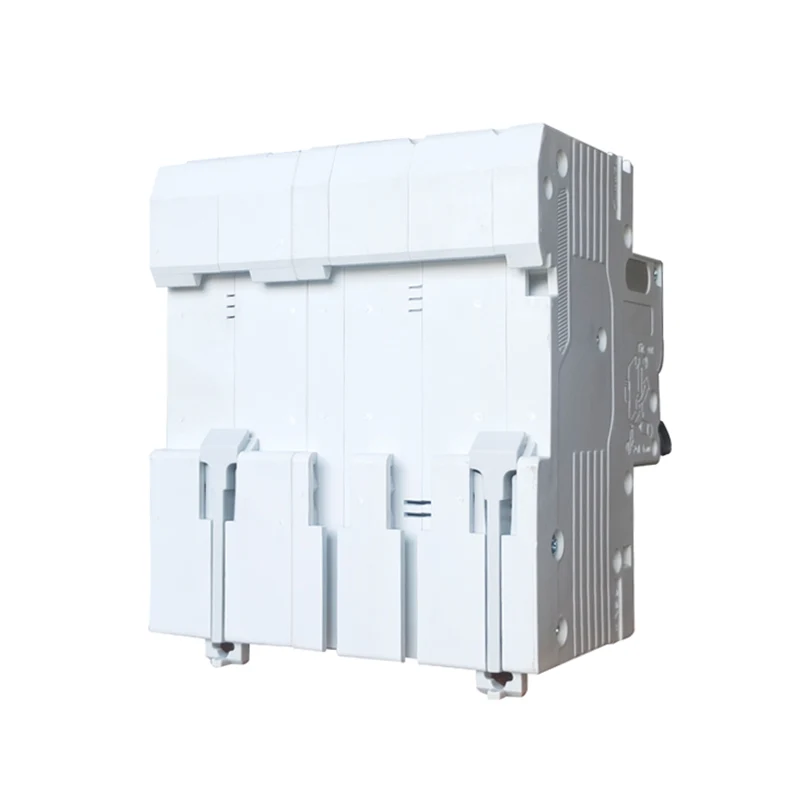

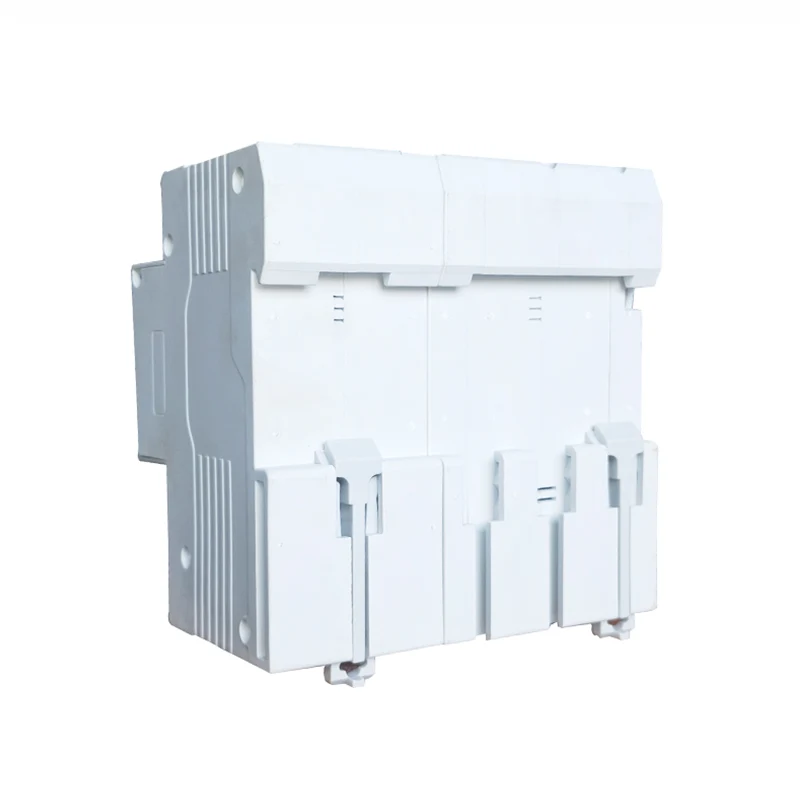

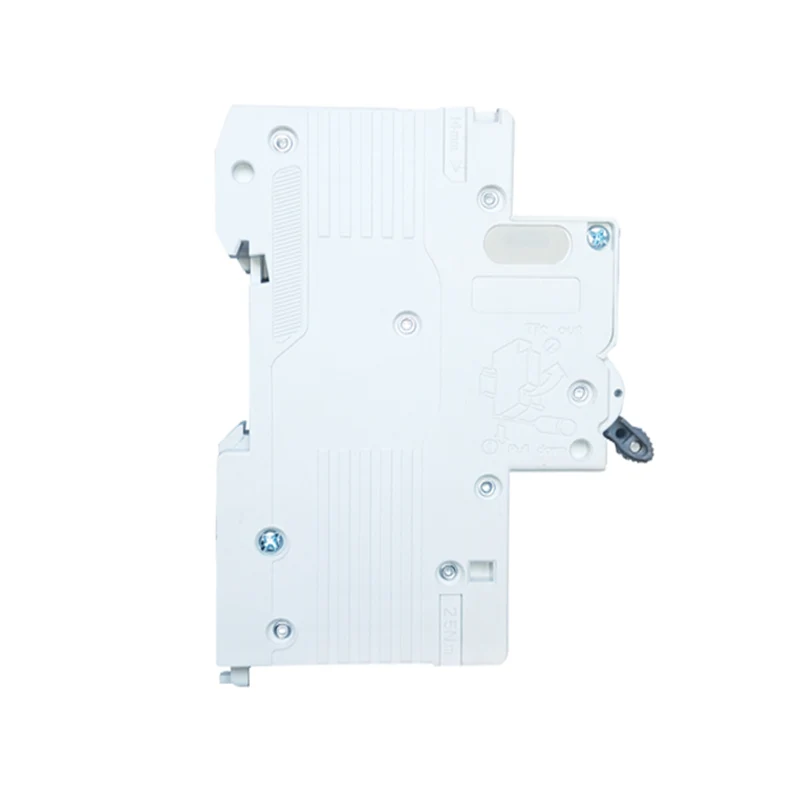

100A 2p 4p Multifunctional RCBO

ʻO STSF2-100 100A 2p 4p Multifunctional RCBO he kūpono ia no AC 50/60Hz, helu ʻia i loko o kahi kaapuni me ka volta o 230V-400V a me ka helu o kēia manawa o 100A, ke hoʻoheheʻe ʻia ke kanaka a i ʻole ke kahe o ka mana. Ke hiki i ka leakage, overvoltage, a me ka undervoltage i nā koina i hoʻonohonoho ʻia, hiki i ke koena o kēia manawa kaʻapuni kaʻapuni hiki ke hana wikiwiki i kahi manawa pōkole loa e ʻoki koke i ka lako mana. Ke hiki aku ka wela o ke koena kaapuni o keia manawa i ka waiwai i hoonohoia, aole pili ka uwea honua. Ke hoʻopili ʻia, hoʻopuka ka huahana i kahi kani alarm e pale i ka palekana o nā limahana a me nā lako uila, a hiki ke pale aku Kāohi i ka pōʻino i nā mea hana i hana ʻia e ka overvoltage i ka pā mana. Loaʻa i ka overload, pōkole pōkole, leakage, overvoltage Hiki ke hoʻohana ʻia nā hana palekana undervoltage e hoʻohuli a hoʻopau i nā mea uila ma lalo o nā kūlana maʻamau. ʻO nā kaapuni kukui, kūpono loa no nā ʻōnaehana hoʻolaha kukui ʻoihana a me nā ʻoihana. He liʻiliʻi ka leo o ka huahana, hoʻonohonoho paʻa, a ʻoi aku ka maikaʻi o ke kumukūʻai ma mua o nā huahana like ʻole. He nani kona helehelena, He koho maikaʻi ia no ka hāʻawi ʻana i ka mana o ka hale. Hoʻopili kēia huahana i nā kūlana GB / T 16917.1 a me IEC 61009-1 a ua loaʻa iā ia ka palapala CE.

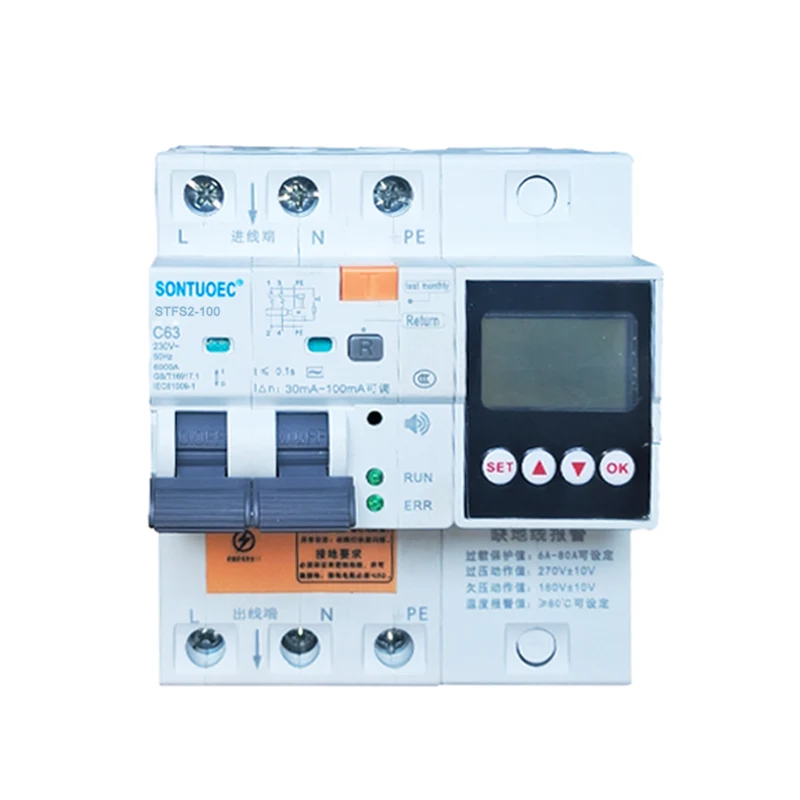

Hoʻohālike:STFS2-100

E hoʻouna i ka nīnau

Hōʻike huahana

Hoʻohālike	STFS2-100 ʻAno uila
ʻO ke koena o kēia manawa	AC
Kūlana	IEC/EN 61009-1
Ua helu ʻia ka sensitivityl△n	0.03,0.1,0.3
Pole No	Pole: 1P+N+PE; 3P+N+PE
Helu I kēia manawa(A)	6A,10A,16A,20A,25A,32A, 40A,63A,80A,100A
Uila (V)	240/415V ;230/400V
Hoʻoholo ʻia ke koena hana i kēia manawa	10ma,30ma,100ma,300ma,500ma
Kaapuni pōkole koena kūlana i koho ʻia kēia manawa	6KA
Electro-machanical hoomanawanui	ma luna o 4000 pōʻaiapuni
HANA:	pale leakage, Overload i kēia manawa pale, pale kaapuni pōkole, ma lalo o ka pale uila, ka mālama ʻana i ka voltage, ʻIke ʻia i kēia manawa/ Voltage hiki ke hoʻololi ʻia, Pale wela， Alakai komo wai a pela aku.

MAHELE EA A puni:

1. ʻAʻole e emi iho ka mahana wela o ka ea ma mua o -5 1C, ʻaʻole kiʻekiʻe ma mua o + 40 C, a ʻaʻole i ʻoi aku ka nui o ka waiwai o kēlā me kēia lā ma mua o + 35 C.

2. Ke kiʻekiʻe: ʻAʻole eʻoi aku ke kiʻekiʻe o ke kahua hoʻonohonoho i ka 2000m.

3.Atmospheric kūlana

Maʻemaʻe ka ea, a ma kahi wela kiʻekiʻe o +40 'C, ʻaʻole kiʻekiʻe ka haʻahaʻa pili o ka ea Ma mua o 50%. ʻAe ʻia ka haʻahaʻa haʻahaʻa haʻahaʻa, e like me +20 C,

ʻAʻole pono ka haʻahaʻa haʻahaʻa ma mua o 90%. Ma muli o ka condensation haʻahaʻa i kekahi manawa ma muli o ka hoʻololi ʻana o ka mahana, pono e uku ʻia i ka lawe ʻana i nā hana kūpono.

4. Māhele Hoʻokomo ʻia ʻo lI a me III

ʻO kēia manawa a me ka helu o nā pou

100A: Hōʻike kēia ua helu ʻia ka RCBO ma 100 amps. ʻO ka helu o kēia manawa ka waiwai kiʻekiʻe loa o ke au i hiki i ka mea haʻihaʻi kaapuni ke lawe mau me ka ʻole o ka wela a me ka pōʻino.

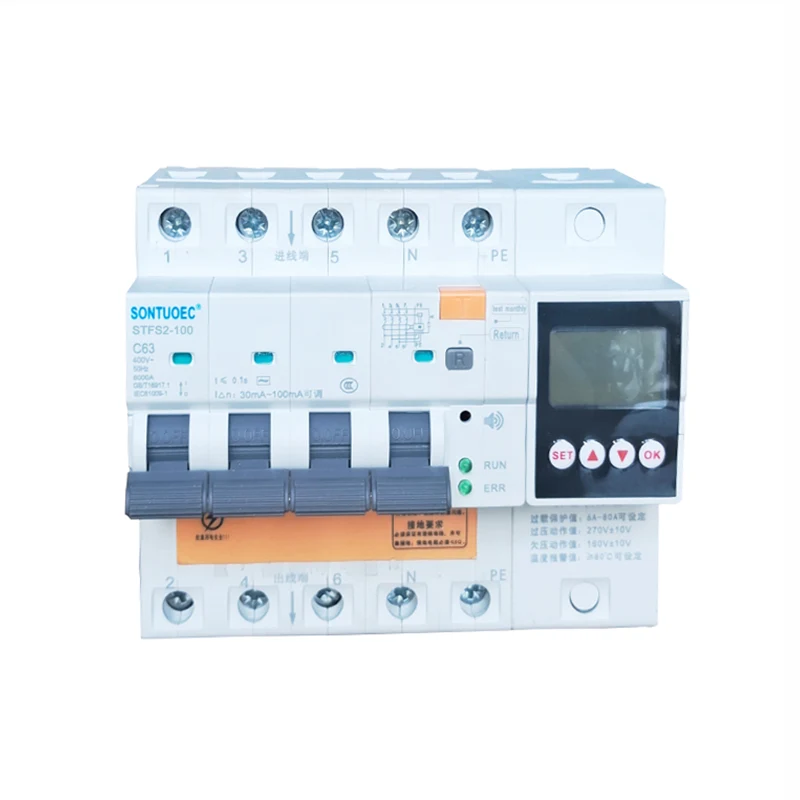

2p, 4p: ʻO ka "p" ma ʻaneʻi ke kū nei i ka helu o nā pou, ʻo ia hoʻi, ka helu o nā pae kaapuni i hiki ke hoʻopili ʻia ka mea hoʻomaha. 'O 2p 'o ia ho'i, hiki ke ho'opili 'ia ka mea ho'opau kaapuni i 'elua mau kaapuni kaapuni (ke ahi a me Zero ka mea ma'amau), a'o ka 4p 'o ia ho'i, hiki ke ho'ohui 'ia i 'ehā mau kaapuni (ma'a mau 'ekolu-wāna ahi a me Zero).

Hana nui

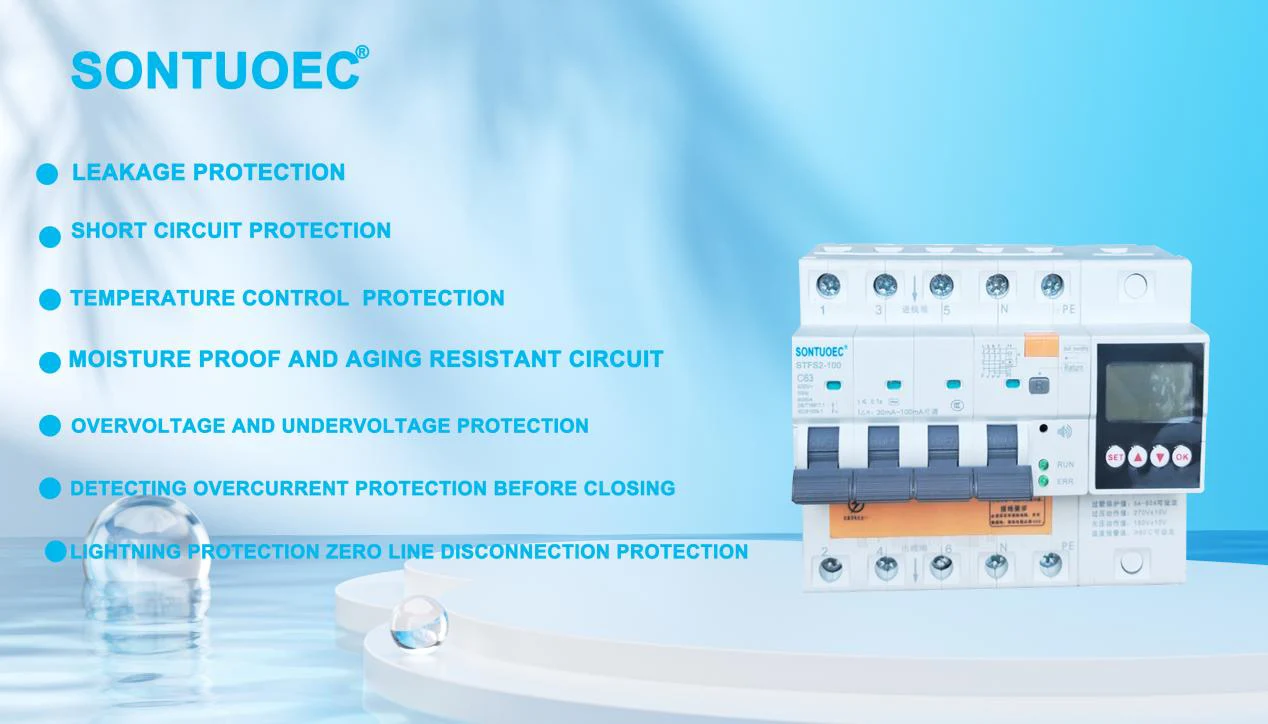

Hōʻike ka Multifunctional ua lako kēia 100A 2p 4p Multifunctional RCBO me nā ʻano hana palekana. Ma waho aʻe o ka overload maʻamau a me ka pale pōkole pōkole, hiki iā ia ke hāʻawi i ka pale leakage, pale undervoltage, pale overvoltage, a pēlā aku. pale mahana，Water ingress alarm，Adjustable current and voltage。'O kēia mau pale e hiki ai i ka RCBO ke hā'awi i ka palekana piha no nā kaapuni a me nā mea hana.

100A 2p 4p Multifunctional RCBO

'Ōlelo Aʻo!

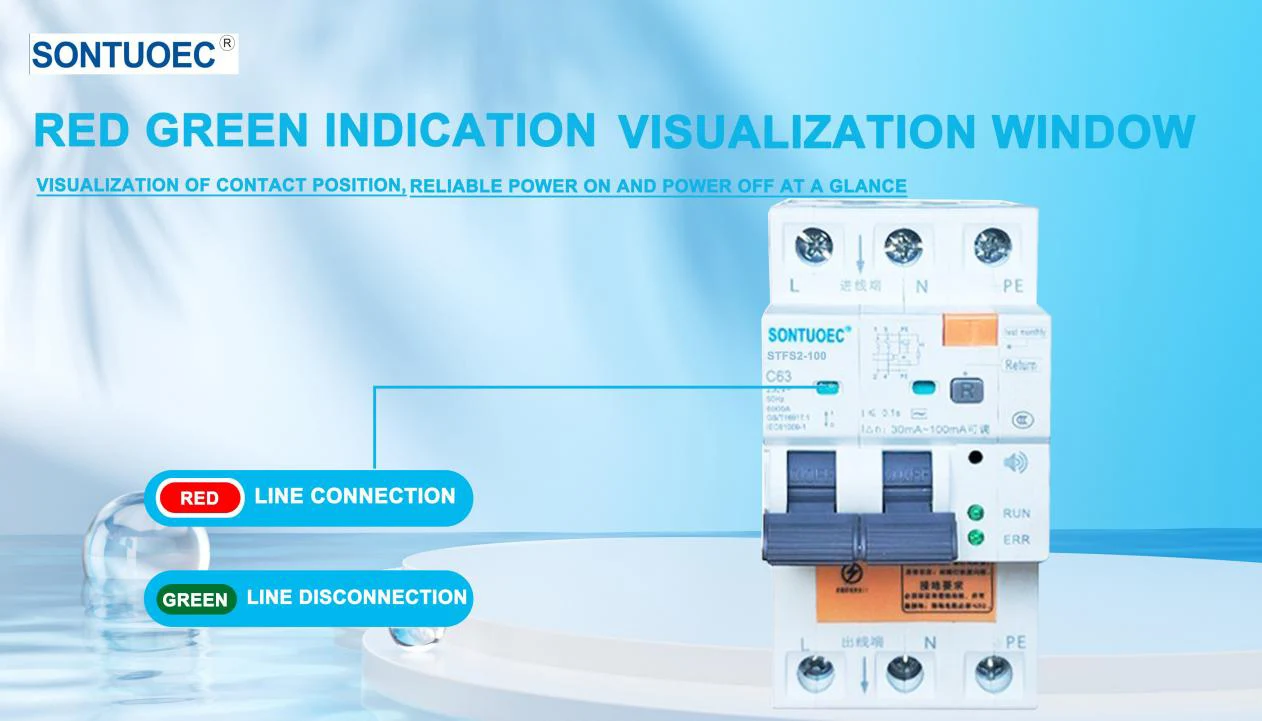

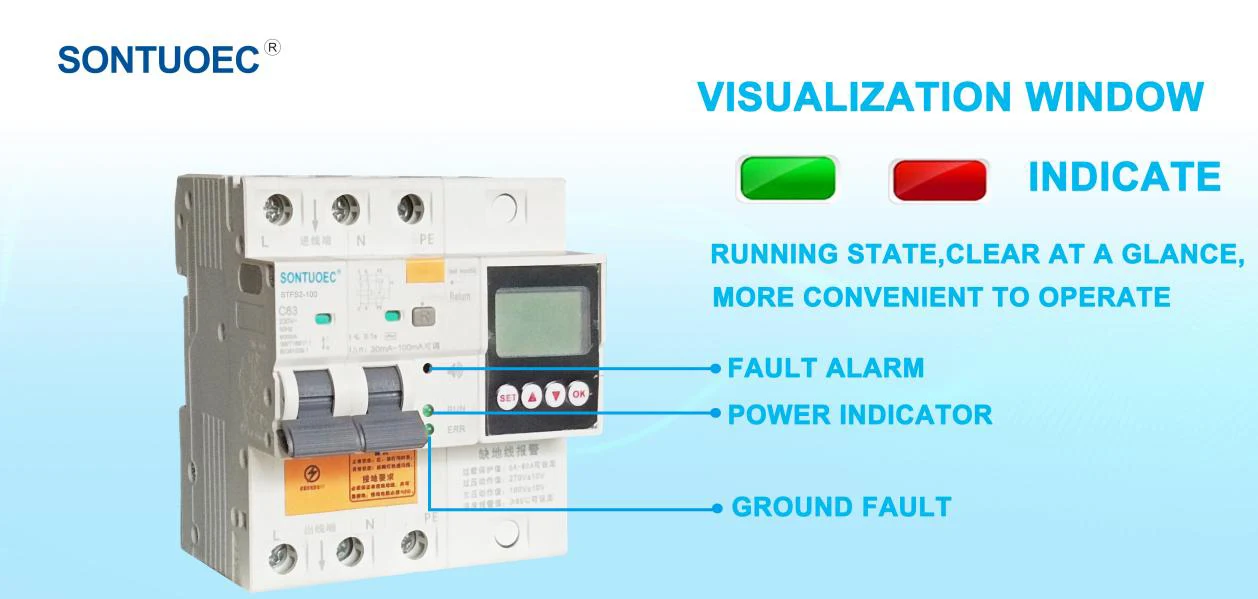

E aʻo i ke kūlana maʻamau: ʻā ke kukui ʻōmaʻomaʻo;

Kūlana kū ʻole: Ua pio ke kukui

Nā pono hoʻokumu:

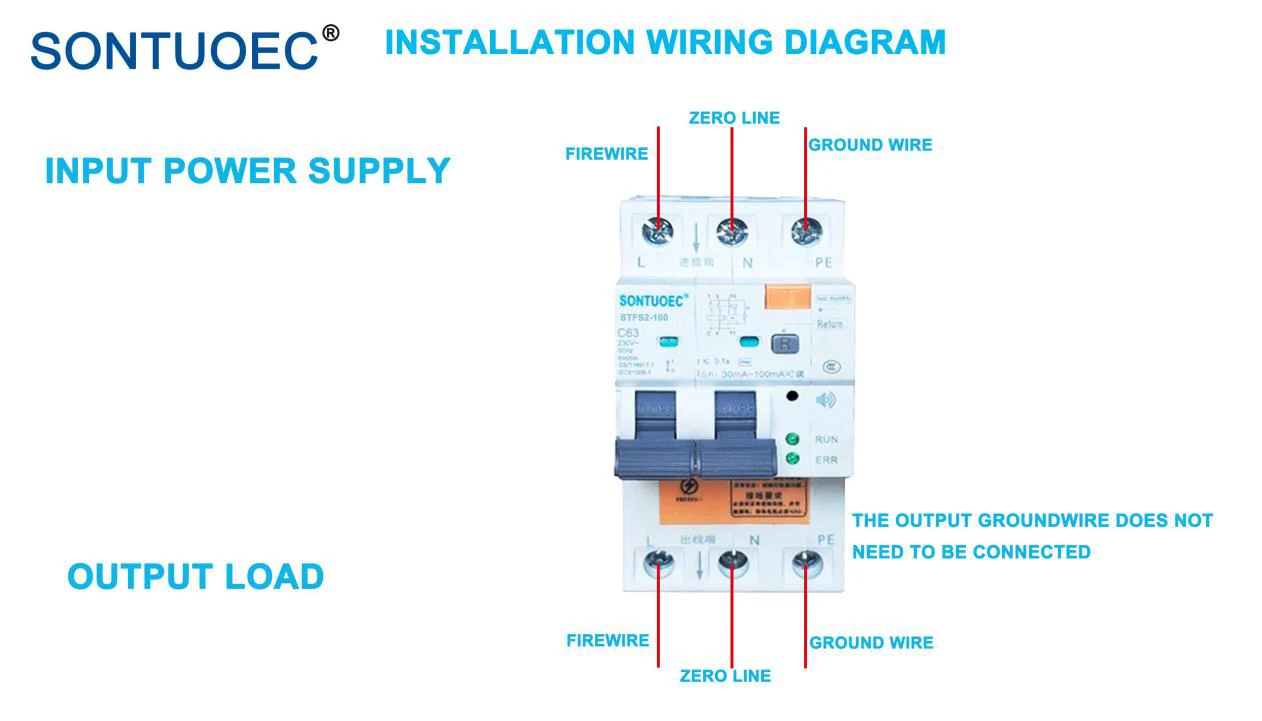

Pono e hōʻoia i ka loaʻa ʻana o kahi uwea honua e komo mai ana a me kahi uwea hoʻopaʻa ʻana, a ʻo ke kūpaʻa hoʻopaʻa ʻana he s 5Q!

Ka Papa Hana

No ka loaʻa ʻana o ka RCBO i nā ʻano hana palekana, hoʻohana pinepine ʻia ia i nā kaʻa e pono ai ka palekana pilikino, e like me nā uila uila no ke kukui, ka mana nāwaliwali, a me nā mea uila i nā hale a me nā wahi ākea. Hōʻike pinepine ʻia kēia mau wahi e ka wai a me ka wai, hiki ke maʻalahi i nā ulia leakage. Eia kekahi, hiki ke hoʻohana ʻia ʻo RCBO i nā ʻōnaehana uila ʻenehana kahi mea e pono ai ka palekana o ke kanaka, e like me nā kaʻa kaʻa kukui peripheral, nā ʻōnaehana radar, a me nā mea ʻimi geological.
