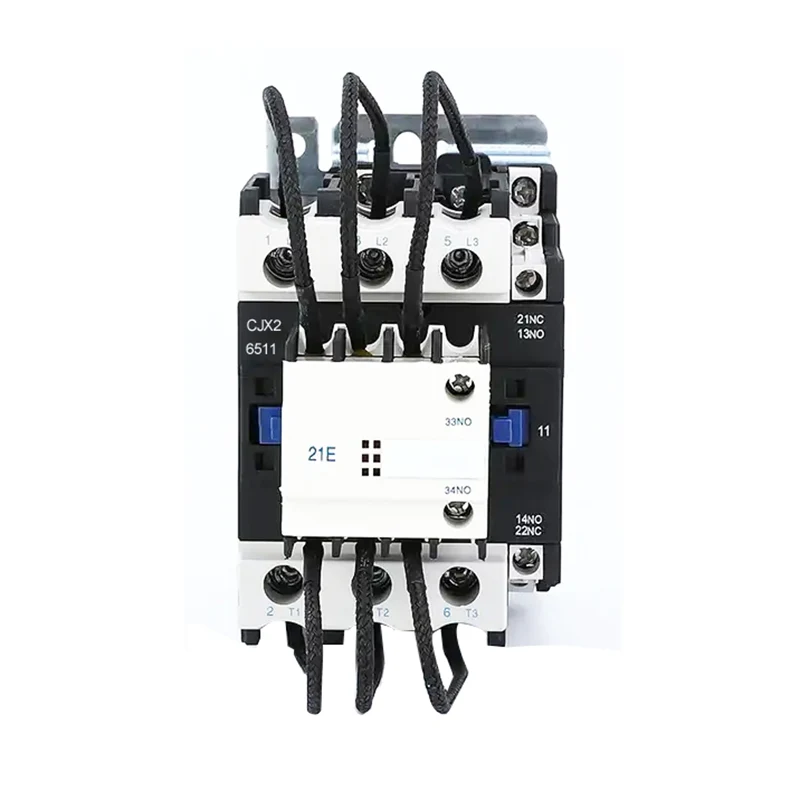

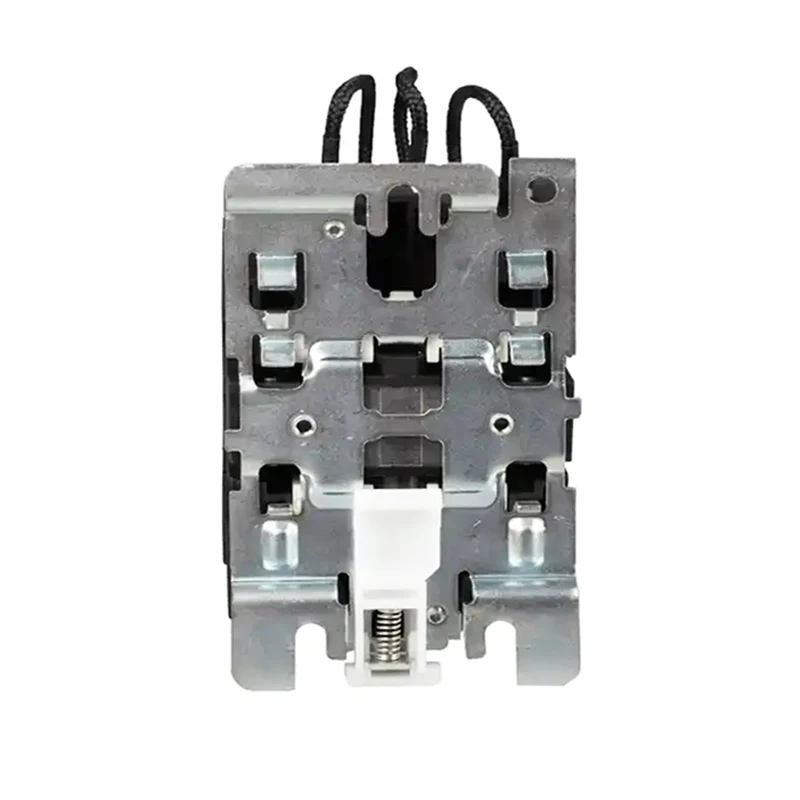

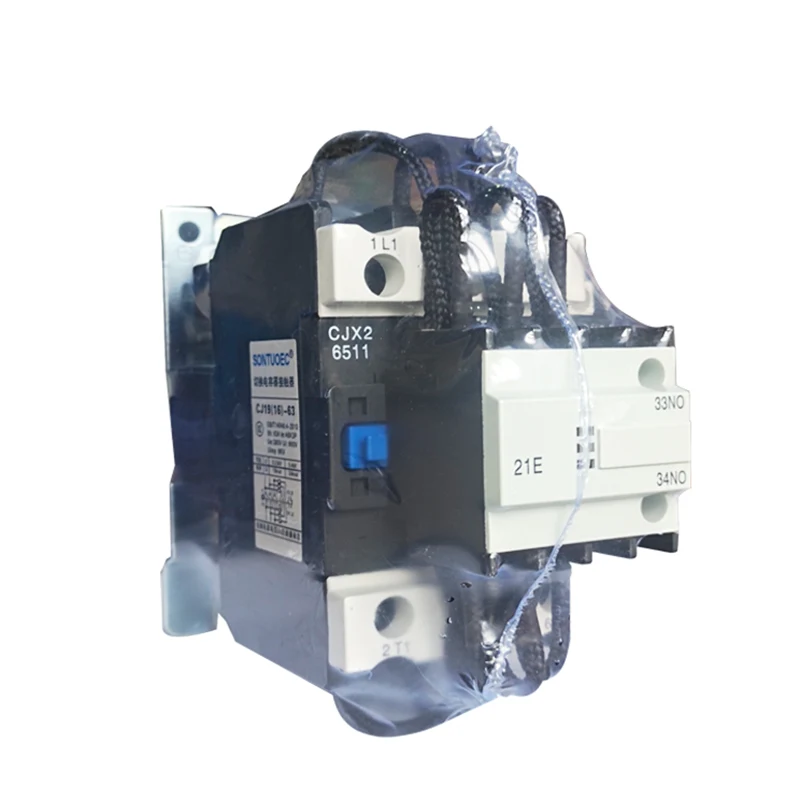

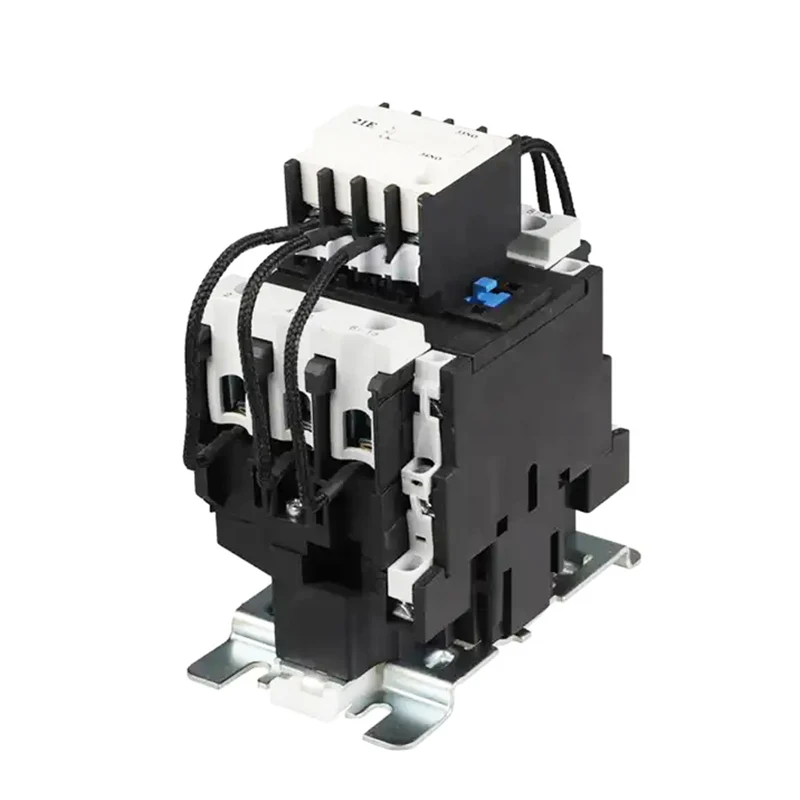

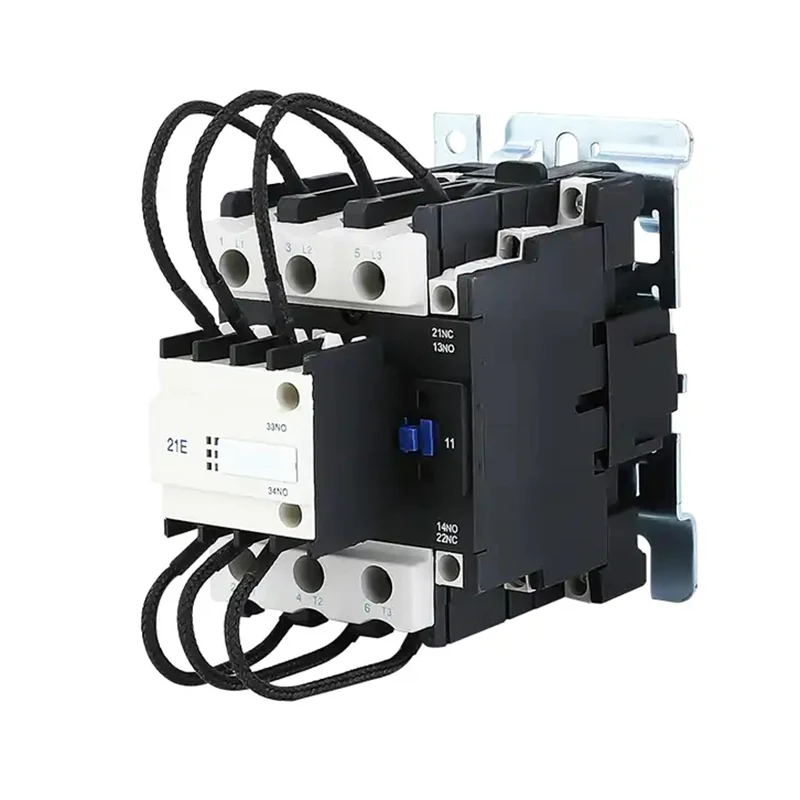

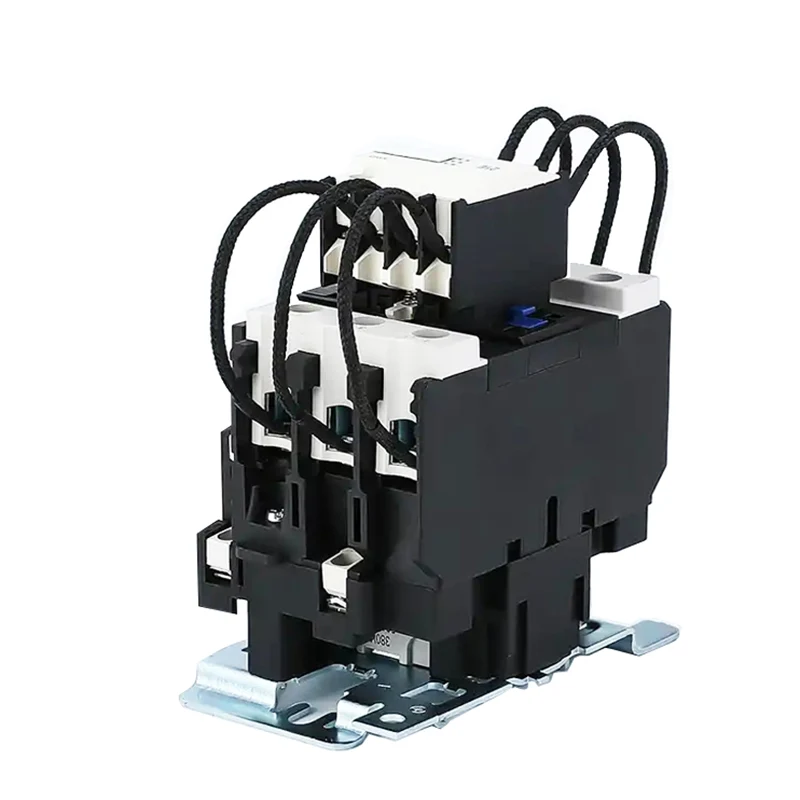

AC Magnetic Controltor

Hoʻohanaʻia ka leka uila Ac Magnetic ma ka pūnaewele o AC 50HZ a iʻole 60hz, a hiki i ka 380V, no ka hanaʻana i ka mana o LV Canactiv. Me ka polokalamu Antisurge, hiki iā ia ke hōʻemi i ka hopena o ka hoʻopiliʻana i ke kauʻana a pale mai ka paleʻana i ka wā e wāwahi ai.

E hoʻouna i ka nīnau

Hōʻike huahana

ʻAno		Cj19-09	CJ19-12	CJ19-18	CJ19-25	Cj19-32	Cj19-40	CJ19-50	Cj19-65	CJ19-80	Cj19-95
Ua heluʻia i ka hanaʻana i kēia manawa (a)	AC3	9	12	18	25	32	40	50	65	80	95
Ua heluʻia i ka hanaʻana i kēia manawa (a)	Ac4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Nā helu maʻamau o 3-phase Nā Mortors 50 / 60hz Compategory AC-3	220 / 230v	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380 / 400v	4	5.5	7.5	11	15	18.5	22	30	37	45
	415v	4	5.5	9	11	15	22	25	37	45	45
	500v	5.5	7.5	10	15	18.5	22	30	37	55	55
	660 / 690v	5.5	7.5	10	15	18.5	30	33	37	45	55
ʻO ka wela wela i kēia manawa (a)		20	20	32	40	50	60	80	80	125	125
ʻO ke ola electrical	AC3 (X104)	100	100	100	100	80	80	60	60	60	60
ʻO ke ola electrical	Ac4 (x104)	20	20	20	20	20	15	15	15	10	10
Ke ola mechanic (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Ka helu o nā pilina	3p +ʻAʻole					3P + NC + NO
Ka helu o nā pilina	3p + nc					3P + NC + NO

Ua hoʻohanaʻia ka SCJ19 hoʻololi i keʻano o keʻano o ka leka uila ma ka mana o AC 50hz a iʻole 600v, no ka hanaʻana i ka mana o LV CACACTIECH. Me ka polokalamu Antisurge, hiki iā ia ke hōʻemi i ka hopena o ka hoʻopiliʻana i ke kauʻana a pale mai ka paleʻana i ka wā e wāwahi ai.

Koho O ka Hana

ʻO ke kumu o ka hanaʻana o ka leka uila AC Magnetic e pili ana i ka hoʻohanaʻana i ka electromagnetic electromagnetic a me ka ikaika magnetic. Ke hoʻoikaikaʻia ka Coil, ua hoʻonuiʻia ke kahuaʻo Magnetic Field i nā mea hao a hoʻopau i nā hoʻopili, no laila e wehe ana i ka circuit. Ke hoʻopauʻia ka Coil, e hoʻoikaikaʻia, ka pauʻana o ke kahuaʻo Magnetic,ʻo ka mea hao hao ma lalo o ka hana o ka pūnāwai, ua wāwahiʻia ke kelepona. Ma kēia ala,ʻike ka leka uila Ac Magnetic i ka mana o ka circuit accuit.

Keʻano a me keʻano

ʻO AC Magnetic Controltor ka mea i kauʻia ma nā'āpana aʻe:

ʻO ka'ōnaehana Electromagnetic: Hoʻohui i nā'āpana e like me ka coil, core a me nā mea hana,ʻo ia ka mea nui no ka hanaʻana i ka nui magnetic a me ka hana magnetic.

ʻO ka'ōnaehana kelepona: Hoʻohui i ka pili nui a me ke kamaʻilioʻana a Auxililiary, e hoʻohanaʻia e huli a haʻalele i ka carcuit. Hoʻohana pinepineʻia nā pilina nui e lawe i nā hana nui,ʻoiai e hoʻohanaʻia nā pilina auxiary eʻike i nā hana mana.

Arc extinguishing

Nā mea'ē aʻe: e like me nā pūnāwai, nā brackets, nā mea hou, etc., hoʻohanaʻia e hoʻoponopono a kākoʻo i nā hana maʻamau o ka meaʻike.

Nā hiʻohiʻona hoʻonohonoho

1. Ua'ākoakoa ka pilina pili me ka paleʻana i kēia manawa

2.ʻO ka hoʻopiliʻana o ka hoʻopiliʻana i ka hanaʻana i ka hanaʻana,ʻo keʻano hana hana, he mea maʻalahi ke nānāʻana ma ka lima, e hoʻohālikelikeʻia e ka lima.

3.Wire sterminal block i mālamaʻia e ka uhi, palekana a hilinaʻi.

4. Hiki ke kauʻia e nā screws, a iʻole 35 7 75mm maʻamau maʻamau.

Nā hana a me nā kūlana hoʻonohonoho

(1) KeleponaʻAmelika:

(2) Nā Kūlana ATMOPHERIC: ATMORSETING MOBIED FRIVIET ma lalo o 50% i ka wā e hiki mai ana ke kiʻekiʻe o ka wela. I ka papa haʻahaʻa haʻahaʻa haʻahaʻa haʻahaʻa haʻahaʻa haʻahaʻa + 25 ℃ no ka awelika me ka haʻahaʻa o ka haʻahaʻa nui loa he 90%, a e noʻonoʻo ana no ka mea ma luna o keʻano o ka gel.

(3) Allitudeʻaʻole i kiʻekiʻe ma mua o 2000m i ka wā e hoʻonoho ai.

(4) papa kumu papa: 3 papa

(5) Kākau hoʻonohonoho: III

(6) Ke hoʻonohonohoʻana i ke kūlana:ʻO ka paeʻana o ka papahele a me ke aniani o ka mokulele o ka mokuleleʻaʻoleʻoi aku ma mua o ± 5 ib

Nā hiʻohiʻona nui

Ke hana nei i ka hana:ʻO ka leka uila AC magnetic i hanaʻia e nā mea hana kiʻekiʻe a me nā hana hana kiʻekiʻe,ʻo ia hoʻi he hilinaʻi kiʻekiʻe a me ka kūpaʻa.

ʻO ke ola holoʻokoʻa

Maʻalahi e mālama: Hoʻolālāʻia keʻano, maʻalahi e hoʻokaʻawale a hoʻoponopono hou i ka uku mālama mālama.

Nā kiko'ī likeʻole: i mea e hoʻokō ai i nā pono o nā mea hoʻohana likeʻole, he mau hiʻohiʻona likeʻole e koho ai, a me nā pae haʻahaʻa e pili ana i nā pae.

AC Magnetic Contactor
