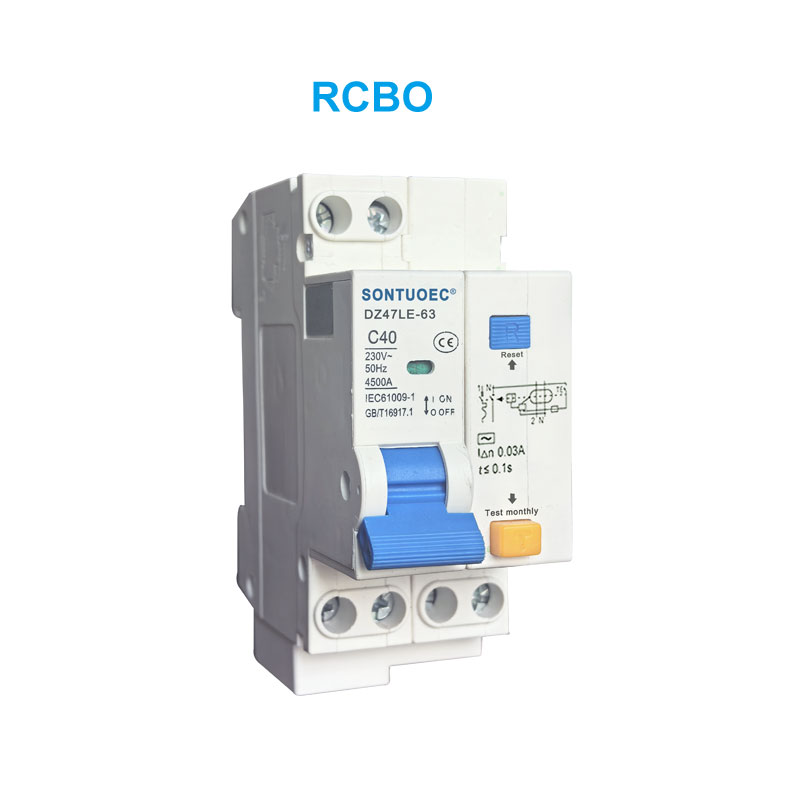

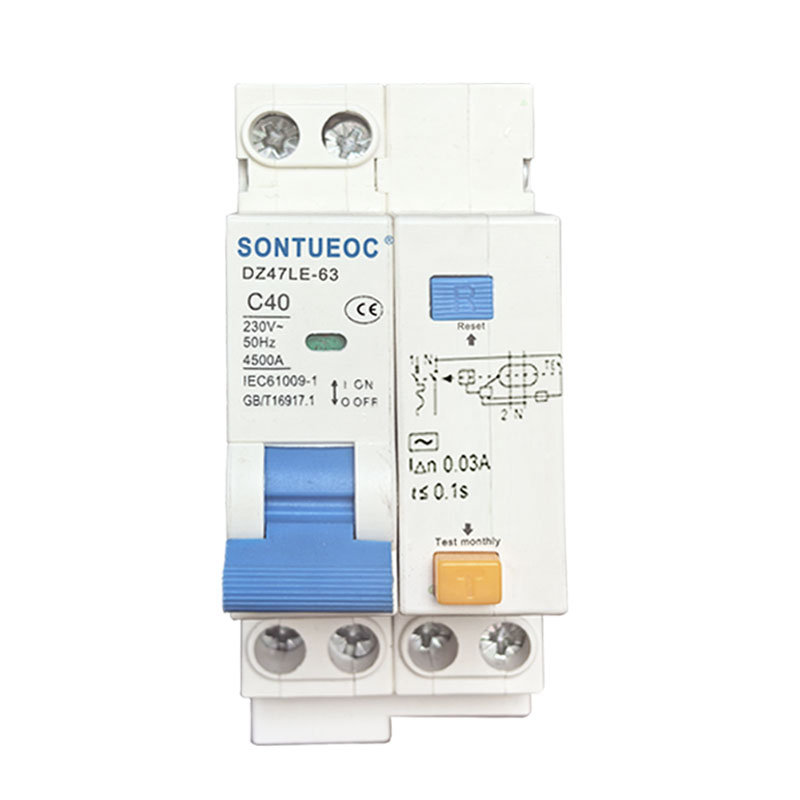

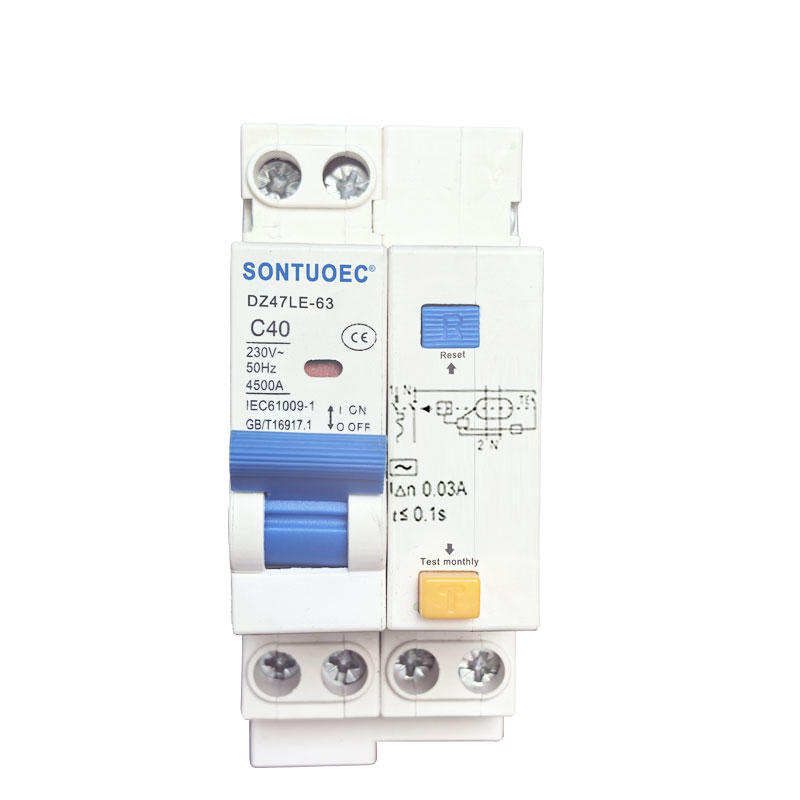

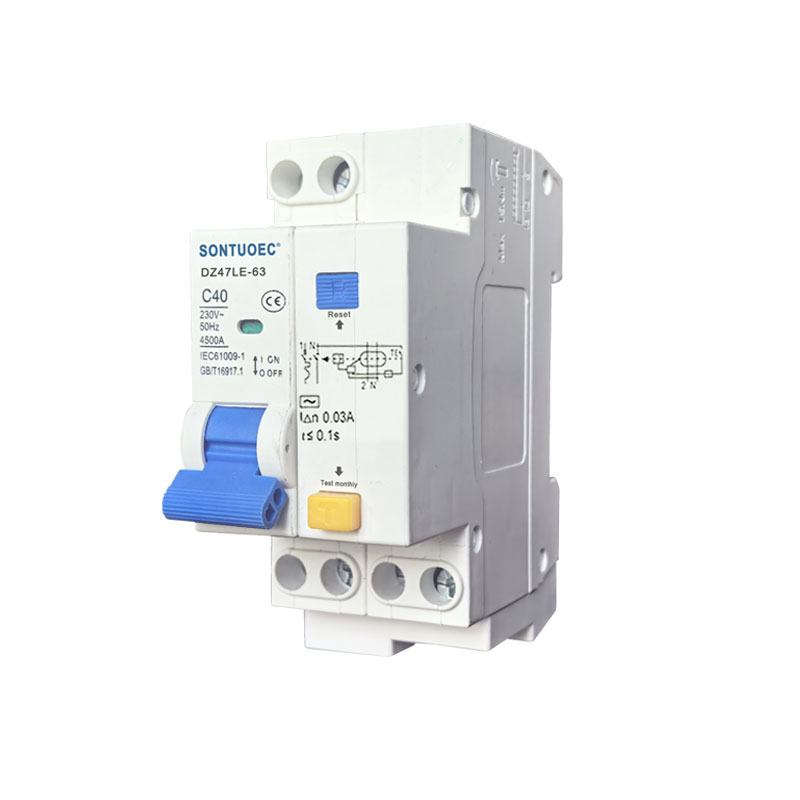

Dz47le-63 RCBO Series Leakage Kaapuni Kaapuni o kēia manawa

ʻO SONTUOEC kekahi o nā mea hoʻolako / mea hana Kina i ka hana ʻana i nā mea uila liʻiliʻi liʻiliʻi. DZ47LE pili i kahi laina o AC 50/60Hz volt 230V no ka pou hoʻokahi ʻelua uea, 2 pole a i ʻole 300V no ka uea. 4 pole a helu i kēia manawa a hiki i 63A. Hiki iā ia ke pale i ka laina a me ka kaʻa mai ka ukana nui a me ka pōkole pōkole hiki ke hoʻohana ʻia no ka hoʻololi pinepine ʻana i ka laina a me ka hoʻomaka ʻole ʻana o ke kaʻa.

Hoʻohālike:DZ47LE-63

E hoʻouna i ka nīnau

Hōʻike huahana

Nā ʻāpana ʻenehana:

Voltage koho (V)	Kuhi ʻia i kēia manawa o ka hihia Inm(A)	Pololei	Neutra	Heluhelu ʻia i kēia manawa(A)	Icu(KA)		Hoʻoholo ʻia ka Leakage ʻAha ʻia i kēia manawa	ʻAʻole i haki i kēia manawa (mA)
Voltage koho (V)	Kuhi ʻia i kēia manawa o ka hihia Inm(A)	Pololei	Linel	Heluhelu ʻia i kēia manawa(A)	Icu(KA)	COS	(mA))	ʻAʻole i haki i kēia manawa (mA)
230	6-63	1	N	6,10,16,	6	0.7	30,50,	15,25,
230	6-63	2		20,25,32,	6	0.7	100,300	50,150
400	6-63	3		40,50,63	6	0.7
400	6-63	3	N		6	0.7
400	6-63	4			6	0.7
230	6-63	1	N		4.5	0.8
400	6-63	2			4.5	0.8
400	6-63	3			4.5	0.8
400	6-63	3	N		4.5	0.8
400	6-63	4			4.5	0.8

DZ47LE Ke koena o kēia manawa i hoʻohana ʻia ka pōʻai kaapuni me ka pale ʻoi aku o kēia manawa (Electronic):

1. Noi

Paahana a me ke ahi

Ka pale uwea a me ka laina i ka overload a me ka pōkole

2. Nā lula maʻamau no ke koho ʻana iā RCBO:

a.Rated koena hana o keia manawa

Ma ≤ 30 mA: pale hou aku i ka hihia o ka pili pololei I ≤300 mA: pale ahi pale i ka hihia o nā ʻāhewa o ka honua.

b.Ka papa hele wāwae

Papa AC - Ua hoʻopaʻa ʻia ke kuʻi ʻana no ka sinusoidal, nā ʻano ʻē aʻe, inā e hoʻopili koke ʻia a hoʻonui lohi paha.

c.Kuhi hele wāwae

C curve (5-10 In) ka pale a me ka hoomalu ana o na kaapuni i ka oi aku a me ka pōkole; pale no ka haawe resistive a me inductive me ka haʻahaʻa inrush au.

ʻO ka pale D (10-14 In) ka pale a me ka hoʻomalu ʻana i nā kaapuni e kūʻē i nā kaumaha nui a me nā pōkole pōkole; pale no nā kaapuni e hāʻawi ana i nā ukana me ke kiʻekiʻe o ke au i ke kaʻapuni pani (nā mea hoʻololi LV/LV, nā kukui wāwahi).
