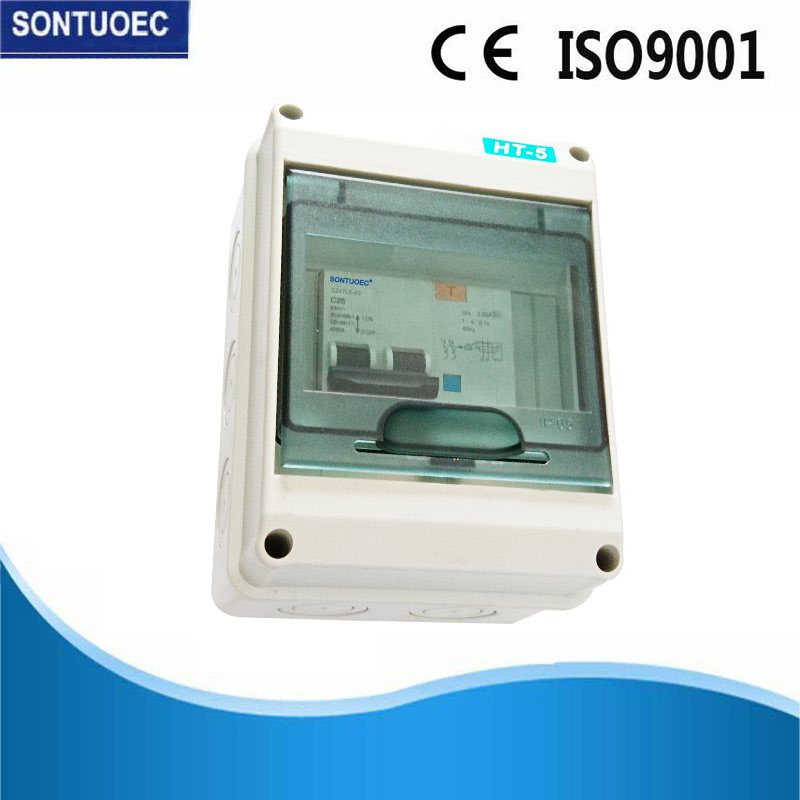

ʻO Dz47le-63 Pūʻali Hoʻohui Hoʻohui ʻia ʻO ka nui kaʻapuni kaapuni RCBO

Hoʻohana nui ʻia ʻo 1.RCBO ma AC 50Hz(60Hz), helu ʻia 230/400V, helu ʻia i kēia manawa 6A a hiki i 63A ʻōnaehana hoʻohele haʻahaʻa haʻahaʻa. Ua like ka RCBO me ka hana MCB+RCD; Hoʻohana ʻia ia no ka pale ʻana i ka haʻalulu uila a me ka pale ʻana i ke kanaka, ka pale ʻana i nā lako uila i ka wā e hoʻopā ai ke kino o ke kanaka i ka uila a i ʻole ka leak pūnaewele uila ma mua o ka waiwai i ʻōlelo ʻia, a ma luna o ka ukana a me ka pale kaapuni pōkole; Hiki iā ia ke lilo i mea hoʻohana ʻole ma ke kaapuni, i hoʻohana nui ʻia ma ka moku noho a me ka ʻāpana kalepa. Hoʻopili ia me ka maʻamau o IEC61009-1. Hoʻohana ʻia ʻo 2.MCB ma AC50/60Hz, helu uila o 230V3, 4 pole 400V, helu ʻia i kēia manawa i 63A no ka overload a me ka pale pōkole a me ka hoʻololi pinepine ʻole ma lalo o ka hihia maʻamau. 3.RCCB i conformity me nā kūlana o IEC61008.It hiki ke oki koke aku i ka hewa kaapuni i ka manawa o ka weliweli hazard a honua leakage o trunkline.No laila, he mea kūpono ia e pale aku i ka haʻalulu a me ke ahi i hoʻokumuʻia e ka honua leale.

Hoʻohālike:DZ47LE-63

E hoʻouna i ka nīnau

Hōʻike huahana

Nā kikoʻī:

RCBO

	Kūlana	Unite	IEC/EN 61009-1
Uila	Ke ano		ʻAno uila
hiʻona	ʻAno(ʻano nalu o ka leakage honua i ʻike ʻia)		A, AC
	ʻO ke ʻano hoʻokuʻu Thermo-magnetic		B,C,D
	Ua helu ʻia i kēia manawa ln	A	6,10,16,20,25,32,40,63
	Pololei	P	1P+N, 3P+N
	Volta helu Ue	V	AC 230, 400
	I△n	A	0.01, 0.03, 0.1, 0.3, 0.5
	Kuhi ʻia ke koena hana a me ka haki ʻana l△m	A	500
	Ua helu 'ia ka mana pōkole Icn	A	6000
	ʻO ka manawa hoʻomaha ma lalo o I△n	S	≤0.1
	Ua helu pinepine ʻia	Hz	50/60
	Hoʻoholo ʻia ka manaʻo me ka uila (1.2/50)Uimp	V	4000
	Dielectric ho'āʻo uila ma ind.Freq no 1min	kV	2
	Ui uila hoʻokaʻawale	V	250
	Degere haumia		2
Nā hiʻohiʻona mīkini	Ola uila		4000
	Ola mīkini		10000
	Hōʻike kuhi hewa		ʻAE
	Degere pale		IP20
	Ka wela ambient	ºC	-5~+40(Noho kūikawā e ʻoluʻolu e nānā
	(me ka awelika o kēlā me kēia lā≤35ºC)	ºC	ka hoʻoponopono ʻana i ka mahana)
	Mahana mālama	ºC	-25~+70
Hoʻokomo	ʻAno hoʻohui terminal		Uila/Pin-type busbar/U-type busbar
	Ka nui terminal luna/lalo no ke kaula	mm2	25
	Ka nui terminal luna/lalo no ke kaula	AWG	5月18日
	Ka nui o ka pahu ma luna/lalo no ka busbar	mm2	25
	Ka nui o ka pahu ma luna/lalo no ka busbar	AWG	3月18日

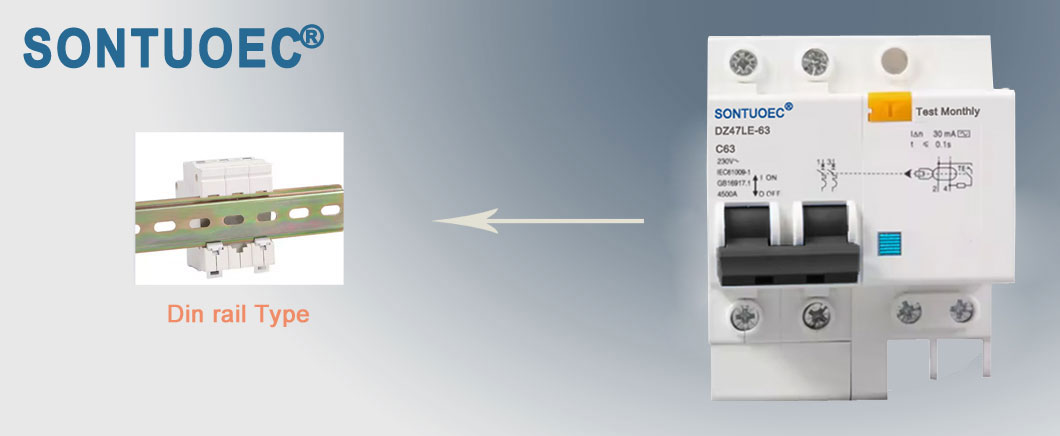

	Ke kau ʻana		Ma ke kaʻaahi DIN EN 60715(35mm) ma o ka mīkini paʻi wikiwiki
	Hoʻohui		Mai luna mai

Roduct Over View:

1. Hāʻawi i ka pale mai ka hewa honua/leakage au a me ka hana o ka noho kaʻawale

2. Ki'eki'e pōkole-kaapuni au kū'ē i ka mana3. Hoʻopili ʻia i ka hoʻopili ʻana i ka pahu pahu a me ke ʻano pin/fork

5. Ho'oka'awale 'akomi i ke kaapuni ke hiki mai ka hewa/leakage o ka honua a 'oi a'e i ka 'ike i helu 'ia.

6. Kūʻokoʻa i ka lako mana a me ka volta laina, a me ka ʻole o ka hoʻopili ʻana o waho, ka fluctuation voltage.

MCB

Hoʻohālike	MCB
Kūlana	IEC60898-1
Pole	1P,2P,3P,4P
Kaʻahele ʻAha	B,C,D
Manaʻo ʻia ka mana pōkole (Icn)	3KA,4.5KA,6KA,10KA
Heluhelu ʻia i kēia manawa (Ma)	1,2,4,6,10,16,20,25,32,40,50,63A
Voltage koho (Un)	AC230(240)/400(415)V
Hoʻokuʻu magnetik	ʻĀpana B: ma waena o 3 a me 5 In
	ʻĀpana B: ma waena o 3 a me 5 In
	C piko: ma waena 5 a me 10 In
	C piko: ma waena 5 a me 10 In
	D pihi: ma waena o 10 a me 14In
	D pihi: ma waena o 10 a me 14In
Electro-mechanical hoʻomanawanui	ʻoi aku ma mua o 6000 cyclesC

RCCB


	Kūlana	Unite	IEC/EN 61008-1
Uila	ʻAno(ʻano nalu o ka leakage honua i ʻike ʻia)		AC,A
Hiʻona	Ua helu ʻia i kēia manawa ma	A	16,25,32,40,63
	Pololei	P	2,4
	Volta helu Ue	V	230/400
	Hoʻopili ʻia ka naʻau I n	A	0.01,0.03,0.1,0.3
	Ui uila hoʻokaʻawale	V	500
	Ua helu ʻia ke koena hana a	A	630
	hakihaki hiki I m
	Awau pokopoko I c	A	4500/6000
	SCPD fuse	A	6000
	ʻO ka wā hoʻomaha ma lalo o I n	s	<0.1
	Ua helu pinepine ʻia	Hz	50/60
	Degere haumia		2
MechanicaI	Ola uila	t	4000
hiʻona	MechanicaI Iife	t	20000
	Hōʻike hewa i kēia manawa		ʻAe
	Degere pale		IP20
	Ka wela ambient	C	Mai -25C a hiki i 40C
	(me ka awelika o kēlā me kēia lā 35)
	Mahana mālama	C	Mai -25C a hiki i 70C
