Uila Molded Case Circuit Breaker

ʻO Electric Molded Case Circuit Breaker he ʻano mea uila me nā hana pale e like me ka overload, pōkole pōkole a ma lalo o ka uila. ʻO kāna kumu hana ma lalo o nā kūlana hana maʻamau, aia ka mea haʻihaʻi kaapuni i kahi kūlana paʻa, i ka wā e hoʻonui ai ke kaʻapuni, ka pōkole pōkole a i ʻole ma lalo o ka volta a me nā hewa ʻē aʻe, e hoʻokaʻawale ka mea hoʻokele kaapuni i ke kaapuni, i mea e pale ai i ke kaapuni a me ka palekana o nā mea hana.

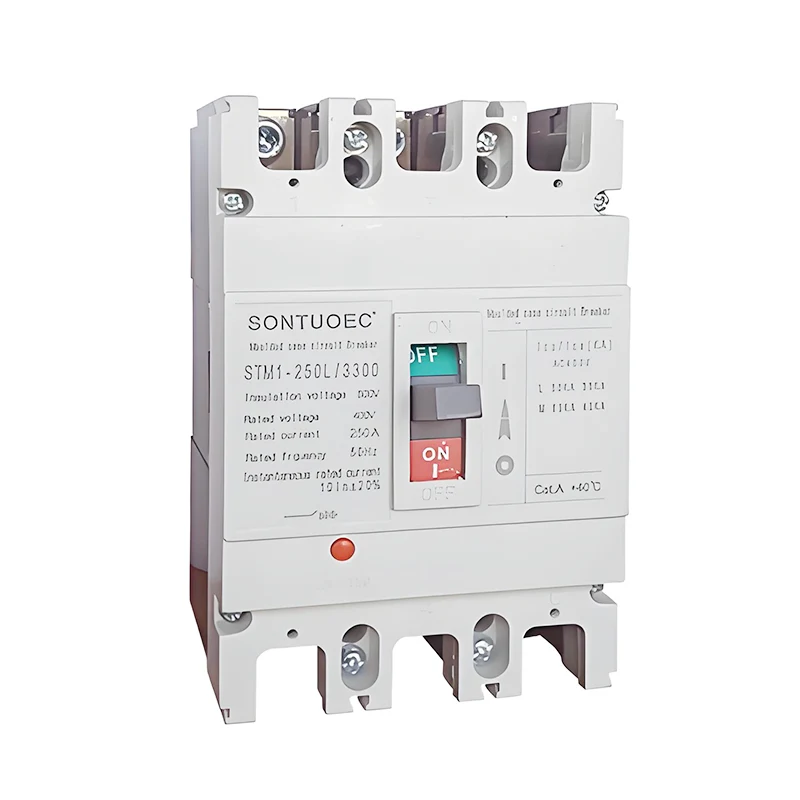

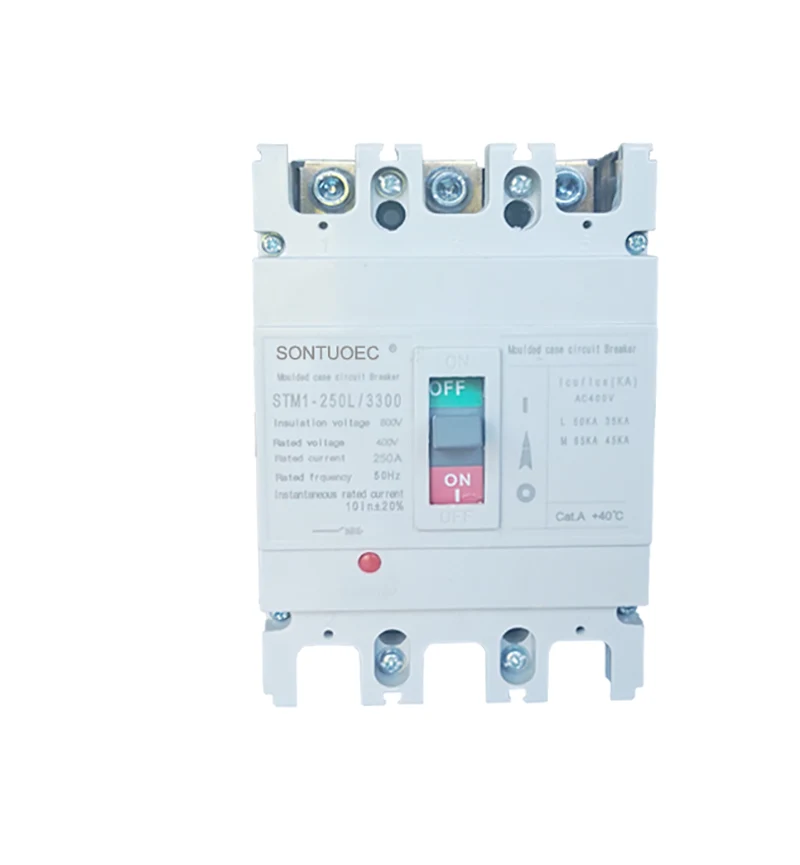

Hoʻohālike:STM1-250L

E hoʻouna i ka nīnau

Hōʻike huahana

Hoʻohālike		STM1-125			STM1-250			STM1-400			STM1-630			STM1-800			STM1-1250
Ua helu ʻia ʻo Cortirucus curert		125			250			400			630			800			1250
Helu Curert hn(A)		16,20,25,32,40.50			100,125,140,160,			250,315,350,400			400,500,630			630,700,800			80,010,001,250
		63,80,100,125			180,200,225.25
Hoʻoholo ʻia ʻo Ue(V)DC								500,550,7			501,000
Koho koho koho UKV)		1000			1000			1500			1500			1500			1500
Uimp(KV)
Ho'āʻo Votage Hoʻokahi Miute(V)		3500			3500			3500			3500			3500			3500
Kaha Haʻihaʻi (KA)		L	M	H	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H
ku(1cs=75%ku)	250V	25	35	50	35	50	65	35	50	65	35	50	65	50	65	80	50	65	80
	500V	25	25	50	35	35	65	35	35	65	35	35	65	50	50	80	50	50	80
	750V	25	15	50	35	25	65	35	25	65	35	25	65	50	35	80	50	35	80
	1000V	25	10	50	35	15	65	35	15	65	35	15	65	50	20	80	50	20	80
Mechaarical He	Manawa	7000			7000			4000			4000			2500			2000
Ola Uila	Manawa	2000			2000			1000			1000			800			600
Nā manawa wehe (ms)		20			20			20			20			20			20
Wahi hoʻokomo		ʻO kēlā me kēia wahi
hiki i ka bolator		ʻAe
Kūlana		IEC 60947-2,IEC60947-1,GB 14048,GB 14048-2
Mahana (C)		25 ℃-50 ℃
Palena Degress		b20
Mea kōkua		OF/SD/MX
Ka lōʻihi o ke au (mm)		250

Hoʻohālike ʻAʻOLE.	STM1-250L/3300
Medium hoʻopau ʻana	Ea
PALAPALA:	IEC 60947-2
Kapili	MCCB
ʻAno	Kaapuni hihia Moulede mea wawahi
Palapala hōʻoia	CE
Nā ʻāpono	CE, ISO9001
Manawa Hoʻouna	Iloko 20 mau lā
Hōʻike	63A-630A
Ke kumu	Wenzhou Zhejiang
Kapa Hana Hana	2000 mau ʻāpana / wiki
Ka māmā holo	ʻAno maʻamau Kaapuni Kaapuni
Hoʻokomo	Paʻa
Helu Pole	3P 4P
Hana	Kuʻuna Kaapuni kaapuni, Kaapuni-Breaker Hoomaluia, Palekana ʻOi aku
Kumukuai	hale hana Kumukuai
Manawa Hoʻopaʻa	12 mahina
Puke Kaʻa	Iloko Pahu/Pahu
Kau inoa	SONTUOEC,WZSTEC,SONTUNE,IMDEC
HS Code	8536200000

ʻO ke ʻano a me nā ʻano

Hoʻolālā: ʻO ka mea hoʻoheheʻe uila i hoʻoheheʻe ʻia i loko o ka ʻōnaehana hoʻopili, ʻōnaehana hoʻopau arc, ʻōnaehana hana, striker, a me nā ʻāpana ʻē aʻe.

Nā hiʻohiʻona:

Loaʻa iā ia ka mana haʻihaʻi kiʻekiʻe a me ke kūpaʻa wela maikaʻi.

Hana ʻia ka pūpū me nā mea hoʻopaʻa ahi, arc-resistant insulating material, me ka hana palekana kiʻekiʻe.

ʻO ka mīkini hana maʻalahi a hilinaʻi, kahi kūpono i nā mea hoʻohana e hana me ka lima a i ʻole ka uila.

Loaʻa i ka disconnector nā hana pale like ʻole, a hiki ke hana i nā hana kūpono e like me nā hewa like ʻole o ke kaapuni.

Hana a hoʻohana

Hana: Loaʻa i ka mea hoʻoheheʻe uila i hoʻoheheʻe ʻia i nā hana palekana e like me ka pale overload, pale kaapuni pōkole, ma lalo o ka pale uila a me ka pale leakage. Ma waena o lākou, ʻo ka pale ʻana i ka overload, ʻo ia hoʻi, i ka wā e hoʻonui ʻia ai ke kaapuni, hiki i ka mea hoʻokaʻawale ke hoʻokaʻawale i ke kaapuni i mea e pale ʻole ai nā mea hana ma muli o ka wela nui; ʻO ka pale kaapuni pōkole, ʻo ia hoʻi, i ka wā e loaʻa ai ke kaʻapuni pōkole i ke kaʻapuni, hiki i ka mea haʻihaʻi kaʻapuni ke ʻoki koke i ke au hewa e pale ai i ke ahi a me nā pōʻino palekana ʻē aʻe; ʻO ka pale undervoltage, ʻo ia hoʻi, i ka wā e haʻahaʻa ai ka mana o ka uila ma mua o ka waiwai i helu ʻia, hiki i ka mea haʻihaʻi kaapuni ke hoʻokaʻawale i ke kaapuni no ka pale ʻana i nā mea hana mai ka pōʻino; a ʻo ka pale leakage, ʻo ia hoʻi, ke hiki mai ka leakage ma ke kaapuni, hiki i ka mea haʻihaʻi kaapuni ke ʻoki pono i ka lako mana no ka pale ʻana i ka palekana pilikino. ʻO ka pale leakage, ʻo ia ka mea hiki i ka mea haʻihaʻi kaapuni ke ʻoki i ka lako mana i ka manawa i loaʻa ka leakage i ke kaapuni e pale i ka palekana pilikino.

Hoʻohana: Hoʻohana nui ʻia nā mea hoʻoheheʻe uila i hoʻoheheʻe ʻia i nā ʻōnaehana uila ma nā kahua noho, ʻoihana, ʻoihana a me ka halihali. Ma ke kahua noho, hoʻohana ʻia ia e pale i ka palekana o nā kaapuni home a me nā mea uila; ma ke kahua pāʻoihana, hoʻohana ʻia ia e pale i nā ʻōnaehana uila o nā hale nui a me nā hale kūʻai; ma ka ʻoihana ʻoihana, hoʻohana ʻia ia e hoʻomalu a pale i ka hana palekana o nā lako hana a me nā mīkini; i ke kahua kaʻahele, hoʻohana ʻia ia e pale i ka hana paʻa o nā kukui uila, nā hōʻailona alahao a me nā mea hana ʻē aʻe.
