Palena leakage leakage kaiapuni naauao 220V kaapuni kaapuni ea

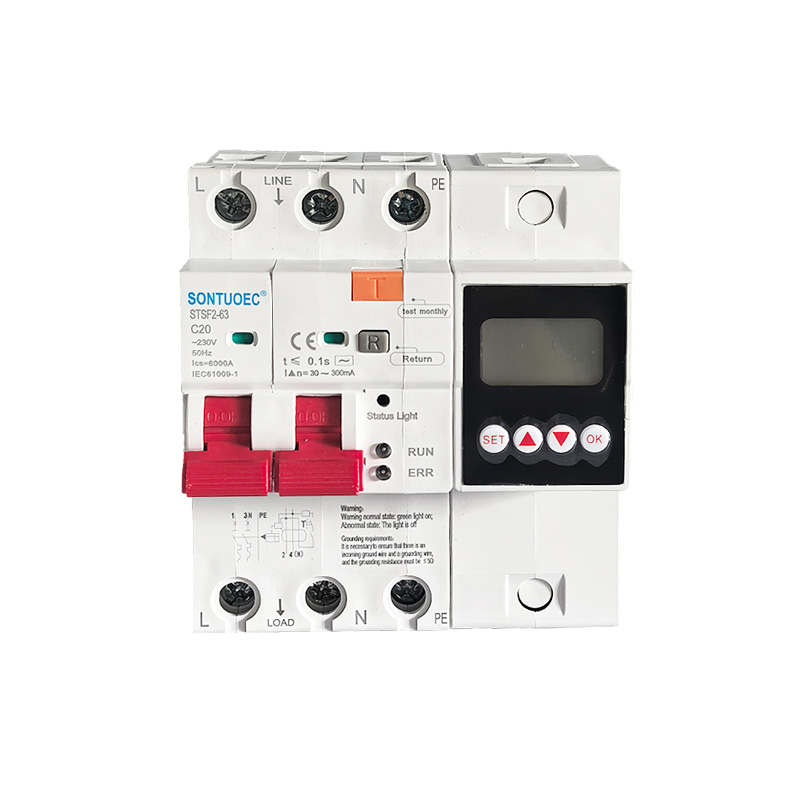

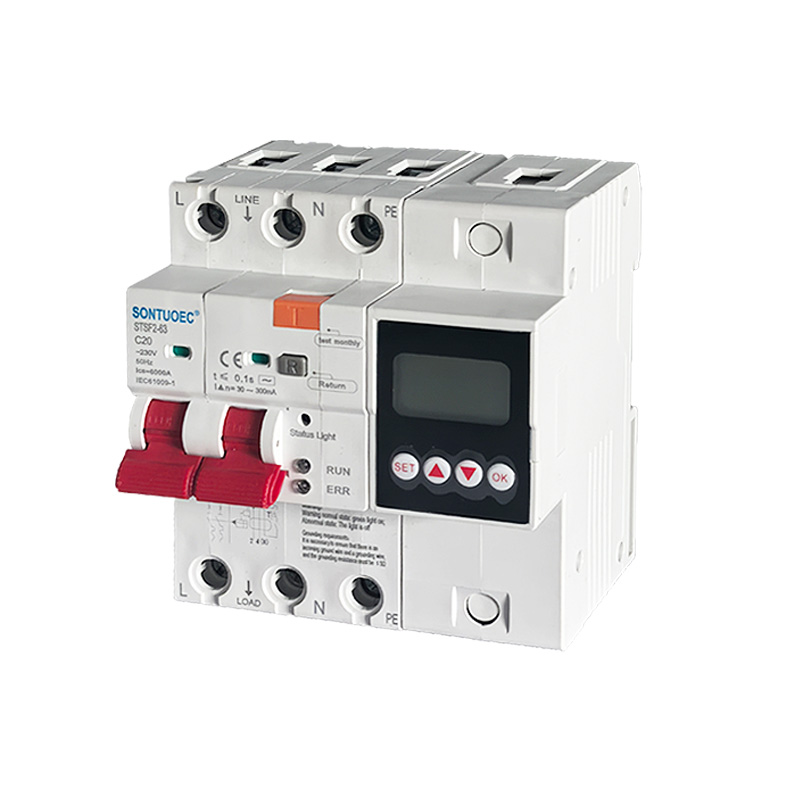

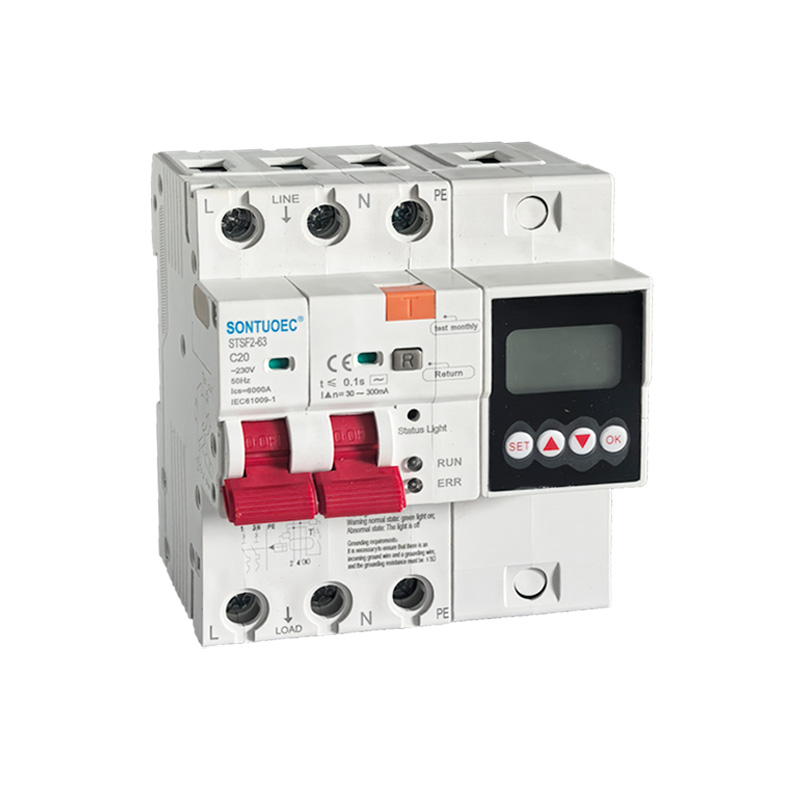

ʻO STSF2-63/100 100A 2p 4p Multifunctional RCBO he kūpono ia no AC 50/60Hz, helu ʻia i loko o kahi kaapuni me ka volta o 230V-400V a me ka helu o kēia manawa o 100A, ke hoʻoheheʻe ʻia ke kanaka a i ʻole ke kahe o ka mana. Ke hiki i ka leakage, overvoltage, a me ka undervoltage i nā koina i hoʻonohonoho ʻia, hiki i ke koena o kēia manawa kaʻapuni kaʻapuni hiki ke hana wikiwiki i kahi manawa pōkole loa e ʻoki koke i ka lako mana. Ke hiki aku ka wela o ke koena kaapuni o keia manawa i ka waiwai i hoonohoia, aole pili ka uwea honua. Ke hoʻopili ʻia, hoʻopuka ka huahana i kahi kani alarm e pale i ka palekana o nā limahana a me nā lako uila, a hiki ke pale aku Kāohi i ka pōʻino i nā mea hana i hana ʻia e ka overvoltage i ka pā mana. Loaʻa i ka overload, pōkole pōkole, leakage, overvoltage Hiki ke hoʻohana ʻia nā hana palekana undervoltage e hoʻohuli a hoʻopau i nā mea uila ma lalo o nā kūlana maʻamau. ʻO nā kaapuni kukui, kūpono loa no nā ʻōnaehana hoʻolaha kukui ʻoihana a me nā ʻoihana. He liʻiliʻi ka leo o ka huahana, hoʻonohonoho paʻa, a ʻoi aku ka maikaʻi o ke kumukūʻai ma mua o nā huahana like ʻole. He nani kona helehelena, He koho maikaʻi ia no ka hāʻawi ʻana i ka mana o ka hale. Hoʻopili kēia huahana i nā kūlana GB / T 16917.1 a me IEC 61009-1 a ua loaʻa iā ia ka palapala CE.

Hoʻohālike:STFS2-63

E hoʻouna i ka nīnau

Hōʻike huahana

NĀ KULA:

Uila hiʻona	Kūlana	Unite	IEC/EN 61009-1
	Ke ano		ʻAno uila
	ʻAno(ʻano nalu o ka leakage honua i ʻike ʻia)		AC
	ʻO ke ʻano hoʻokuʻu Thermo-magnetic		B,C,D
	Ua helu ʻia i kēia manawa ln	A	6-100A(6,10,16,20,25,32,40,63;80,100A) Hiki ke hoʻololi
	Pololei	P	1P+N, 3P+N
	Volta Ue	V	AC 230, 400 (Hoʻololi ʻia)
	Ua helu ʻia ka ʻike I△n	A	30-300mA(30,100,300mA) Hiki ke hoʻololi
	Ua helu ʻia ke koena hana a me ka haki ʻana l△m	A	500
	Ua helu 'ia ka mana pōkole Icn	A	6000
	ʻO ka manawa hoʻomaha ma lalo o I△n	S	≤0.1
	Ua helu pinepine ʻia	Hz	50/60
	Hoʻoholo ʻia ka manaʻo me ka uila (1.2/50)Uimp	V	4000
	Dielectric ho'āʻo uila ma ind.Freq no 1min	kV	2
	Ui uila hoʻokaʻawale	V	250
	Degere haumia		2
Other	ʻO ka pale uila ma luna / lalo;	a	Palena wela ; Ke ahi-mau a me nā mea ʻē aʻe
Nā hiʻohiʻona mīkini	Ola uila		4000
	Ola mīkini		10000
	Hōʻike kuhi hewa		ʻAE
	Degere pale		IP20
	Ka wela ambient	ºC	-5~+40(Noho kūikawā e ʻoluʻolu e nānā
	(me ka awelika o kēlā me kēia lā≤35ºC)	ºC	ka hoʻoponopono ʻana i ka mahana)
	ʻO ka mahana mālama	ºC	-25~+70
Hoʻokomo	ʻAno hoʻohui terminal		Uila/Pin-type busbar/U-type busbar

	Ka nui terminal luna/lalo no ke kaula	mm2	25
	Ka nui terminal luna/lalo no ke kaula	AWG	18-5
	Ka nui o ka pahu ma luna/lalo no ka busbar	mm2	25
	Ka nui o ka pahu ma luna/lalo no ka busbar	AWG	18-3
	Ke kau ʻana		Ma ke kaʻaahi DIN EN 60715(35mm) ma o ka mīkini paʻi wikiwiki
	Hoʻohui		Mai luna mai

MAHELE EA A puni:

1. ʻAʻole e emi iho ka mahana wela o ka ea ma mua o -5 1C, ʻaʻole kiʻekiʻe ma mua o + 40 C, a ʻaʻole i ʻoi aku ka nui o ka waiwai o kēlā me kēia lā ma mua o + 35 C.

2. Ke kiʻekiʻe: ʻAʻole eʻoi aku ke kiʻekiʻe o ke kahua hoʻonohonoho i ka 2000m.

3.Atmospheric kūlana

Maʻemaʻe ka ea, a ma kahi wela kiʻekiʻe o +40 'C, ʻaʻole kiʻekiʻe ka haʻahaʻa pili o ka ea Ma mua o 50%. ʻAe ʻia ka haʻahaʻa haʻahaʻa haʻahaʻa, e like me +20 C,

ʻAʻole pono ka haʻahaʻa haʻahaʻa ma mua o 90%. Ma muli o ka condensation haʻahaʻa i kekahi manawa ma muli o ka hoʻololi ʻana o ka mahana, pono e uku ʻia i ka lawe ʻana i nā hana kūpono.

4. Māhele Hoʻokomo ʻia ʻo lI a me III

ʻO kēia manawa a me ka helu o nā pou

100A: Hōʻike kēia ua helu ʻia ka RCBO ma 100 amps. ʻO ka helu o kēia manawa ka waiwai kiʻekiʻe loa o ke au i hiki i ka mea haʻihaʻi kaapuni ke lawe mau me ka ʻole o ka wela a me ka pōʻino.

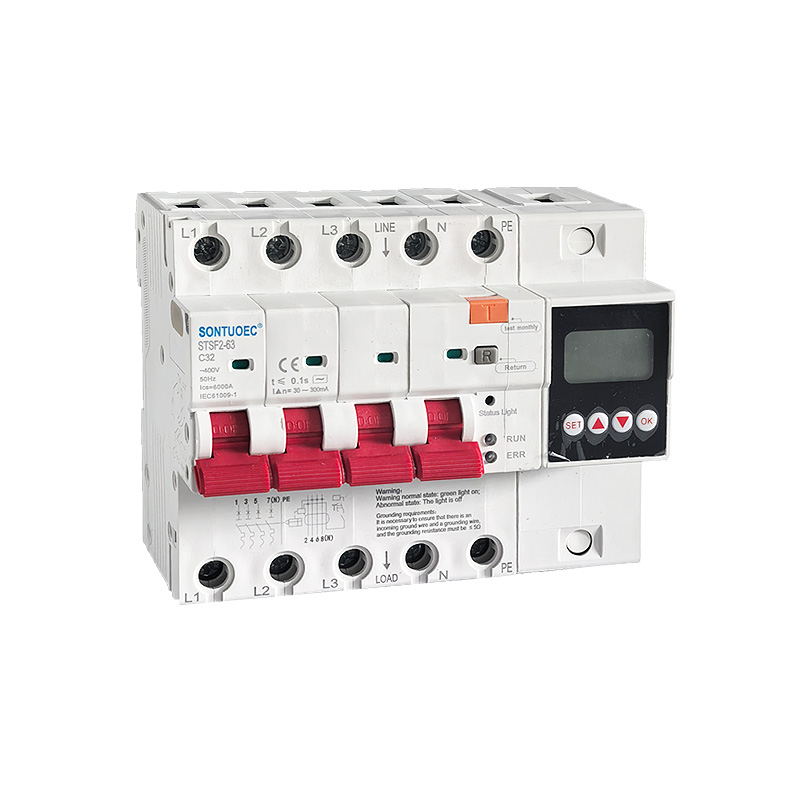

2p, 4p: ʻO ka "p" ma ʻaneʻi ke kū nei i ka helu o nā pou, ʻo ia hoʻi, ka helu o nā pae kaapuni i hiki ke hoʻopili ʻia ka mea hoʻomaha. 'O 2p 'o ia ho'i, hiki ke ho'opili 'ia ka mea ho'opau kaapuni i 'elua mau kaapuni kaapuni (ke ahi a me Zero ka mea ma'amau), a'o ka 4p 'o ia ho'i, hiki ke ho'ohui 'ia i 'ehā mau kaapuni (ma'a mau 'ekolu-wāna ahi a me Zero).

Hana nui

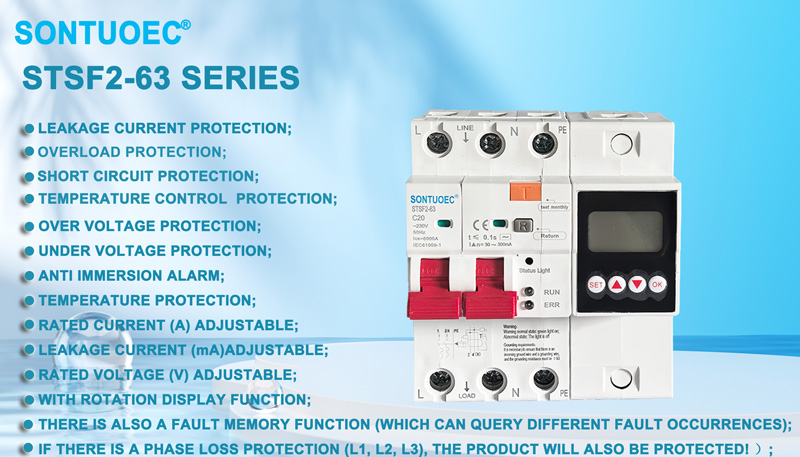

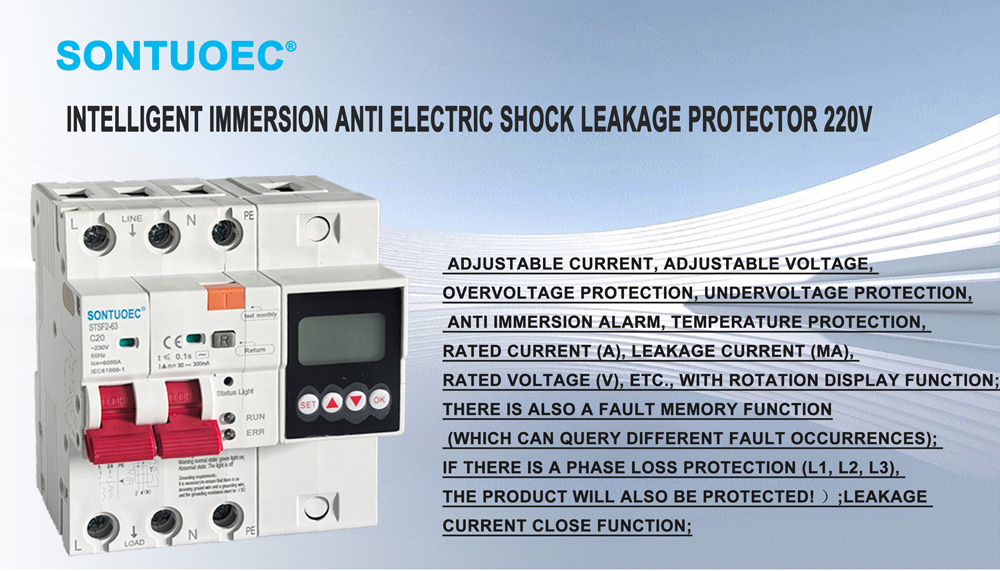

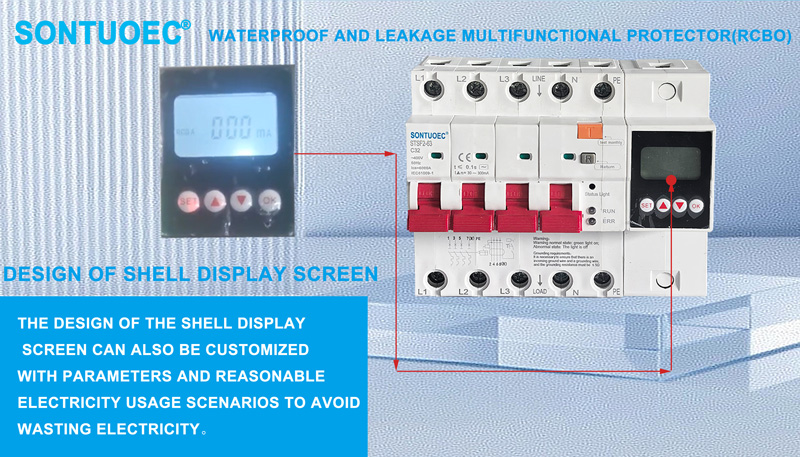

Hōʻike ka Multifunctional ua lako kēia 100A 2p 4p Multifunctional RCBO me nā ʻano hana palekana. Ma waho aʻe o ka overload maʻamau a me ka pale pōkole pōkole, hiki iā ia ke hāʻawi i ka pale leakage, pale undervoltage, pale overvoltage, a pēlā aku. pale mahana，Water ingress alarm，Adjustable current and voltage。'O kēia mau pale e hiki ai i ka RCBO ke hā'awi i ka palekana piha no nā kaapuni a me nā mea hana.

'Ōlelo Aʻo!

E aʻo i ke kūlana maʻamau: ʻā ke kukui ʻōmaʻomaʻo;

Kūlana kū ʻole: Ua pio ke kukui

Nā pono hoʻokumu:

Pono e hōʻoia i ka loaʻa ʻana o kahi uwea honua e komo mai ana a me kahi uwea hoʻopaʻa ʻana, a ʻo ke kūpaʻa hoʻopaʻa ʻana he s 5Q!

Ka Papa Hana

No ka loaʻa ʻana o ka RCBO i nā ʻano hana palekana, hoʻohana pinepine ʻia ia i nā kaʻa e pono ai ka palekana pilikino, e like me nā uila uila no ke kukui, ka mana nāwaliwali, a me nā mea uila i nā hale a me nā wahi ākea. Hōʻike pinepine ʻia kēia mau wahi e ka wai a me ka wai, hiki ke maʻalahi i nā ulia leakage. Eia kekahi, hiki ke hoʻohana ʻia ʻo RCBO i nā ʻōnaehana uila ʻenehana kahi mea e pono ai ka palekana o ke kanaka, e like me nā kaʻa kaʻa kukui peripheral, nā ʻōnaehana radar, a me nā mea ʻimi geological.

Hōʻailona Wela: Palena leakage leakage kaiapuni naauao 220V kaapuni kaapuni ea
