Hana kikowaena MCCC 3p

ʻO ke kumu o ka hanaʻana o ka mea hana palekana o ka palekana MCCB 3P e pili ana i ka hui pūʻana o kahi mea hana magnetic a me kahi pane. I ka wā e hele ai kahi'āpana a iʻole ka pōkole i loko o ke kalapu, e hoʻonui i kēia manawa, a ua hōʻokiʻia ka hana magnetic i kēia manawa. ʻO keʻano, uaʻike ka paneʻana i ka mahana i ka mahana i ka carcuit a me nā mea hoʻokūkū nui e hōʻoki i ka waiwai a me ke ahi e hōʻeha ai i nāʻoihana

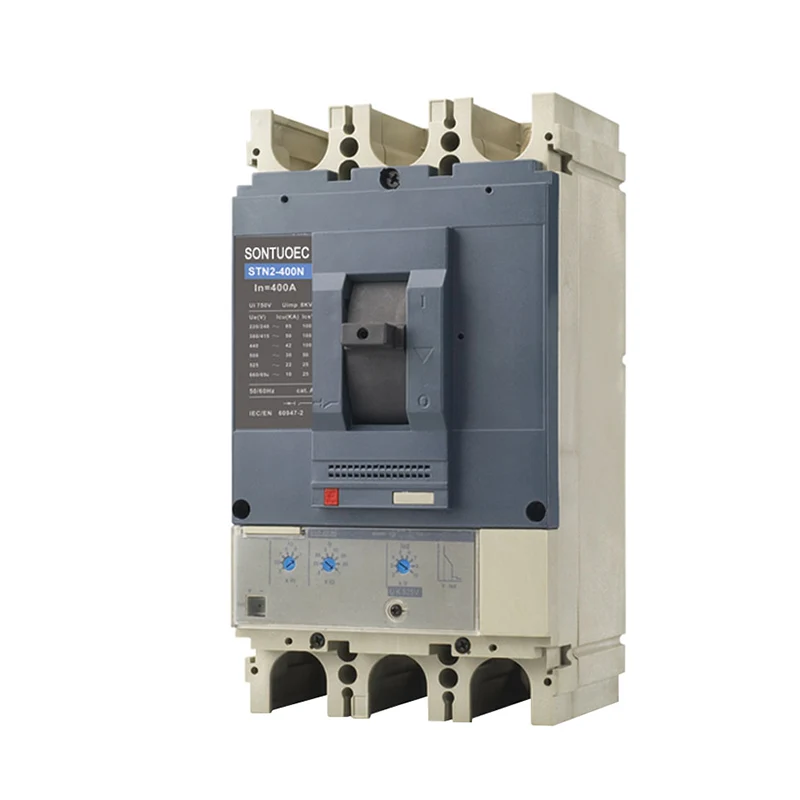

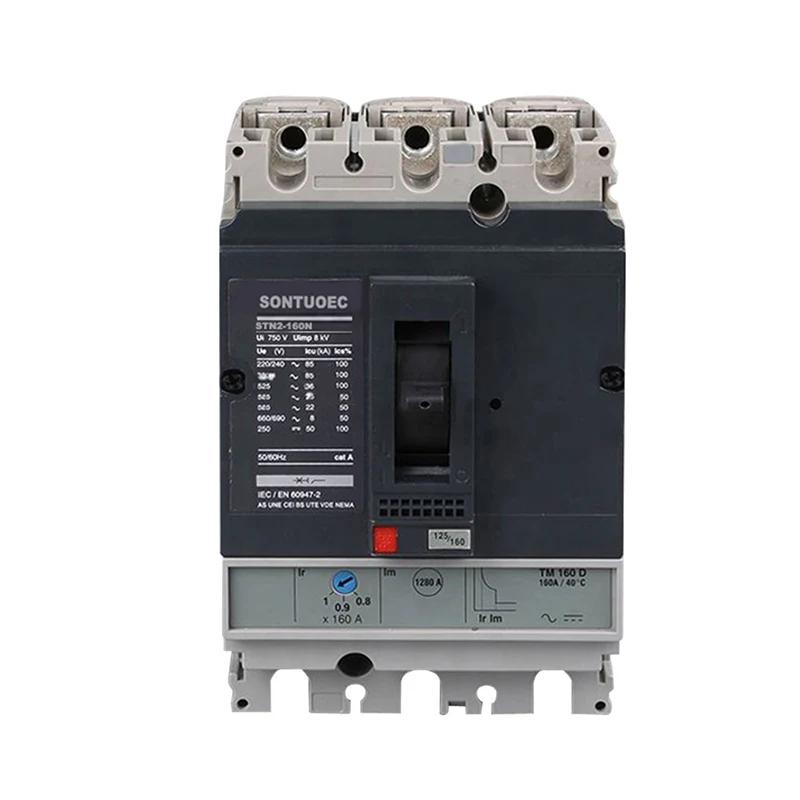

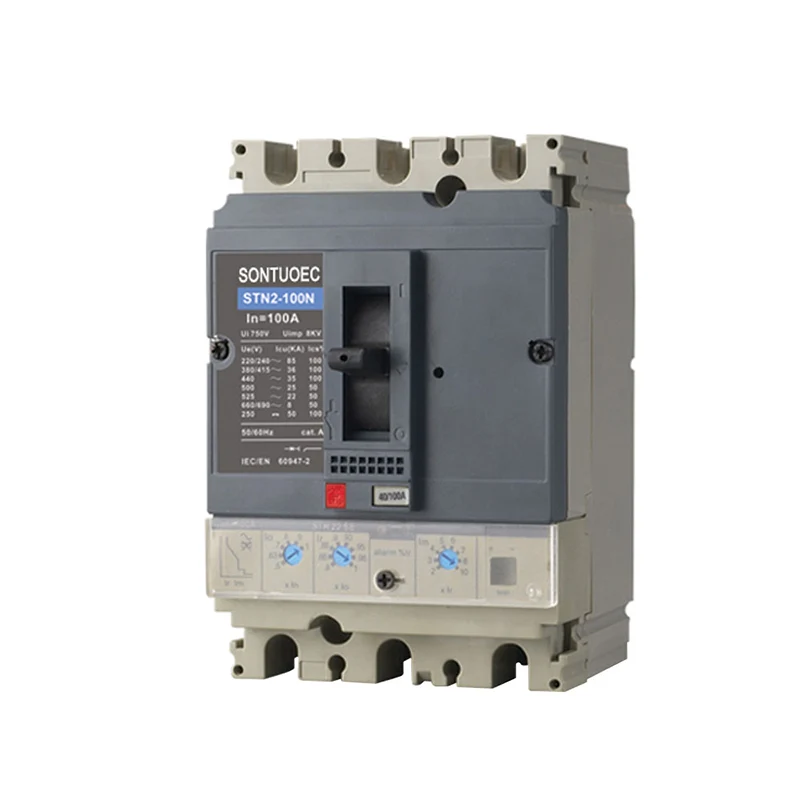

Hoʻohālike:STN2-100

E hoʻouna i ka nīnau

Hōʻike huahana

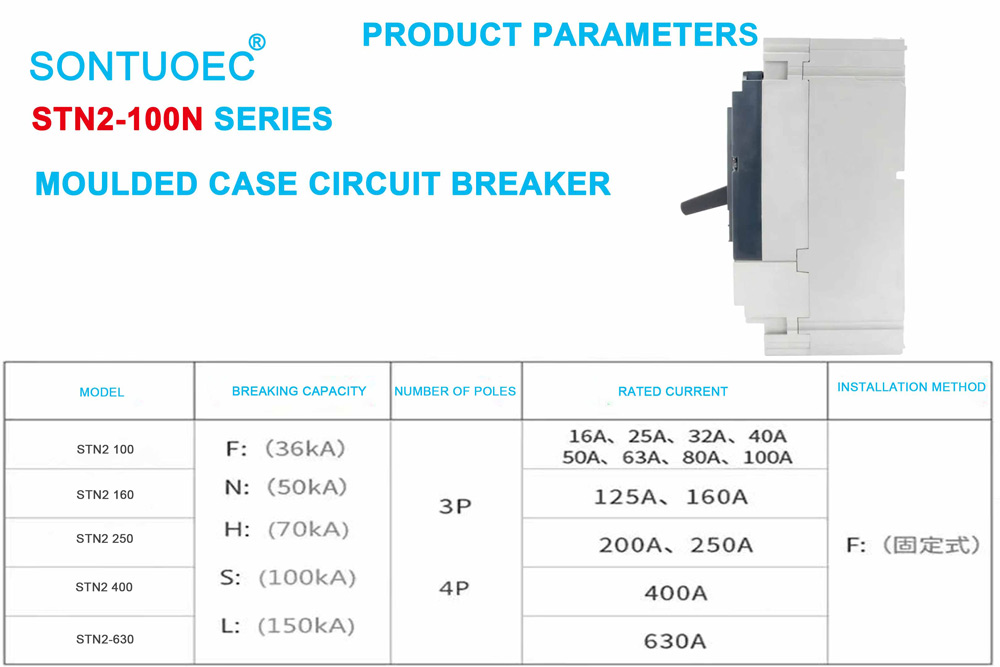

Nā kiko'ī	Stn2-100				Stn2-160				Stn2-250				Stn2-400				Stn2-630
Frame i kēia manawa (a)	100				160				250				400				630
Ka helu o nā poles	3		4		3		4		3		4		3		4		3		4
Ust ungallents (icu, ko (	F	N		H	F	N		H	F	N		H	F	N		H	F	N		H
Ac220 / 240v (mai)	85	90		100	85	90		100	85	90		100	40	85		100	40	85		100
AC380 / 415V (ka)	36	50		70	36	50		70	36	50		70	36	50		70	36	50		70
Ua helu i ka voltage coltage	AC800V
Ua helu hou i ka Voltage	AC690V
ʻO ka pukaʻana, tripping turm. Tmd, a	63, 80, 100				80, 125, 160				125, 160, 200, 250				-				-
ʻO nā manawa i kēia manawa, uila Kuui, Micona, a	40, 100				40, 100, 160				100, 160, 250				250, 400				250, 400, 630
Auntiliary, Alert, Fault Nā HoʻohanaʻImi	A / sd / sde / sdx
Shunt & ma lalo o ka coltage col	Mx / mn
Ola keʻano mechanical	50000				40000				20000				15000				15000
ʻO ke ola uila	30000				20000				10000				6000				4000

E hōʻike ana ka palekana palekana MCCB 3P / 4P i ka hana nui loa o ke kumuwaiwai hou a me nāʻoihana hana, ke kaʻawale kiʻekiʻe, a me ka pauna kiʻekiʻe. Hoʻokomoʻiaʻo Circuit Breaker me ka paleʻana i ka paleʻana, pōkole a me ka paleʻana i ka paleʻana o ka carcit.
