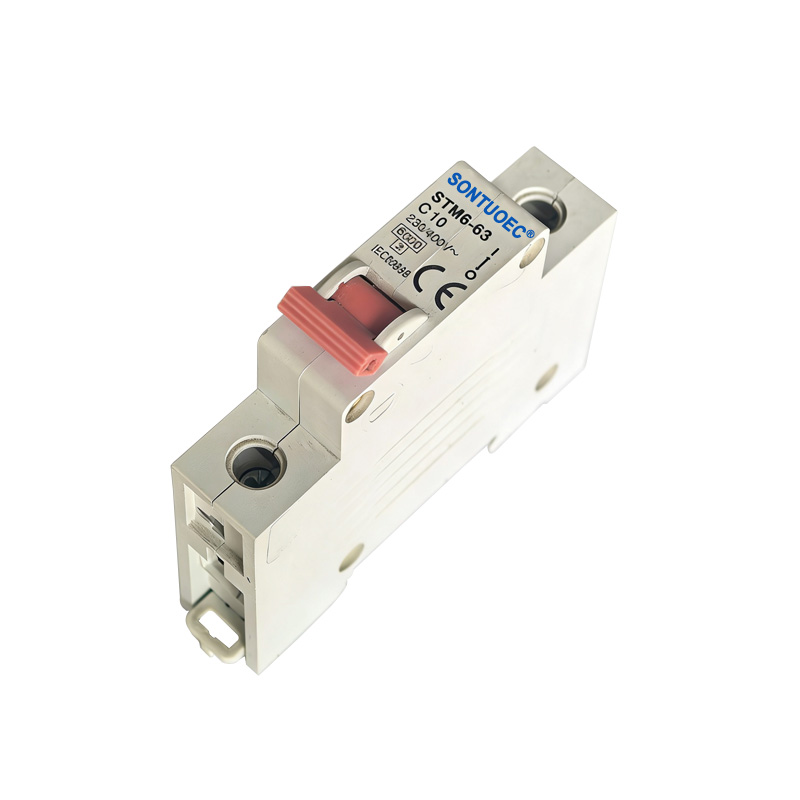

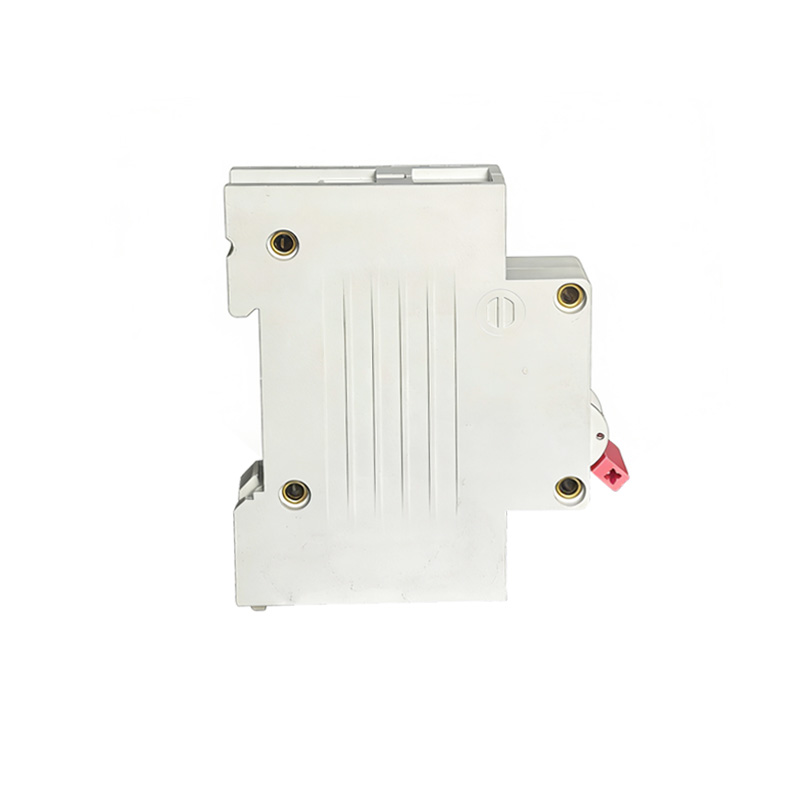

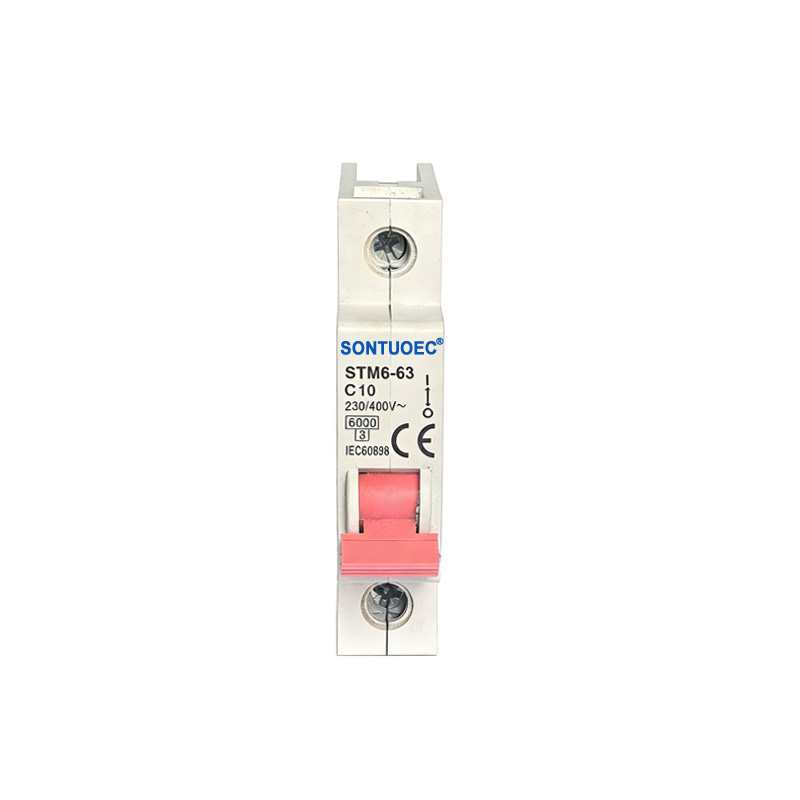

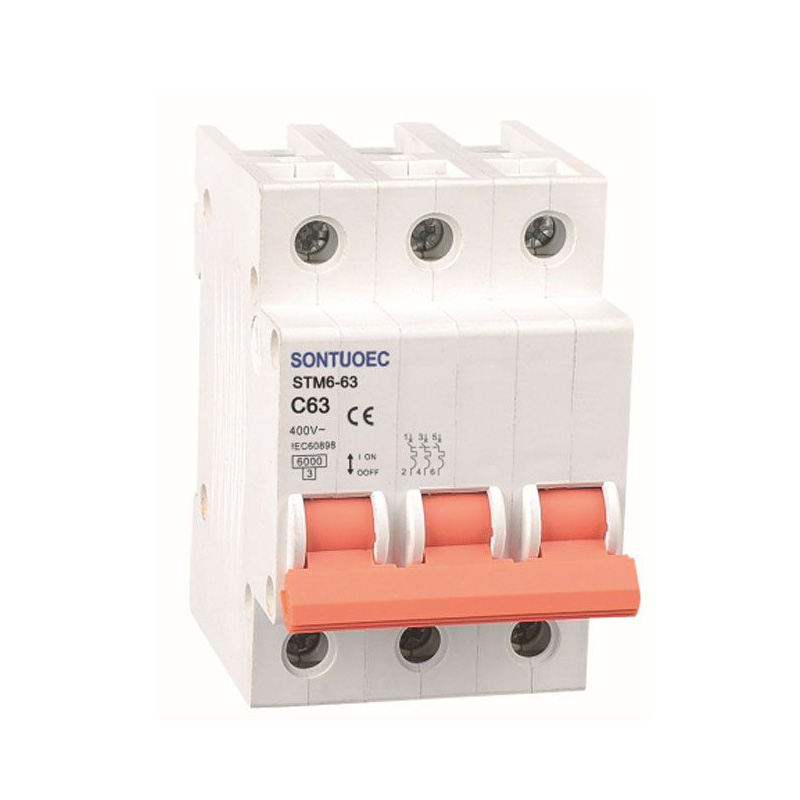

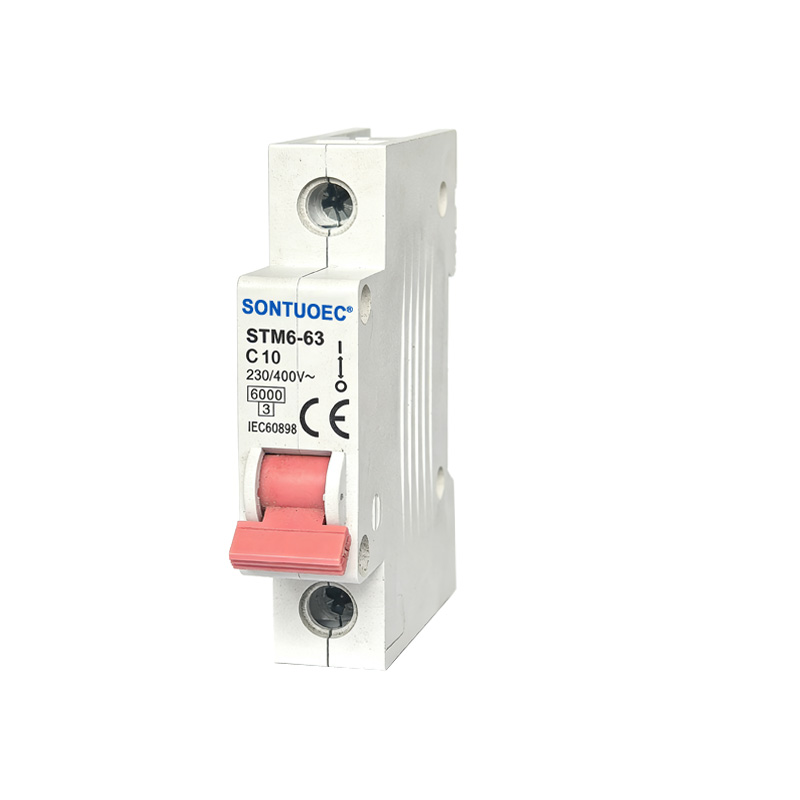

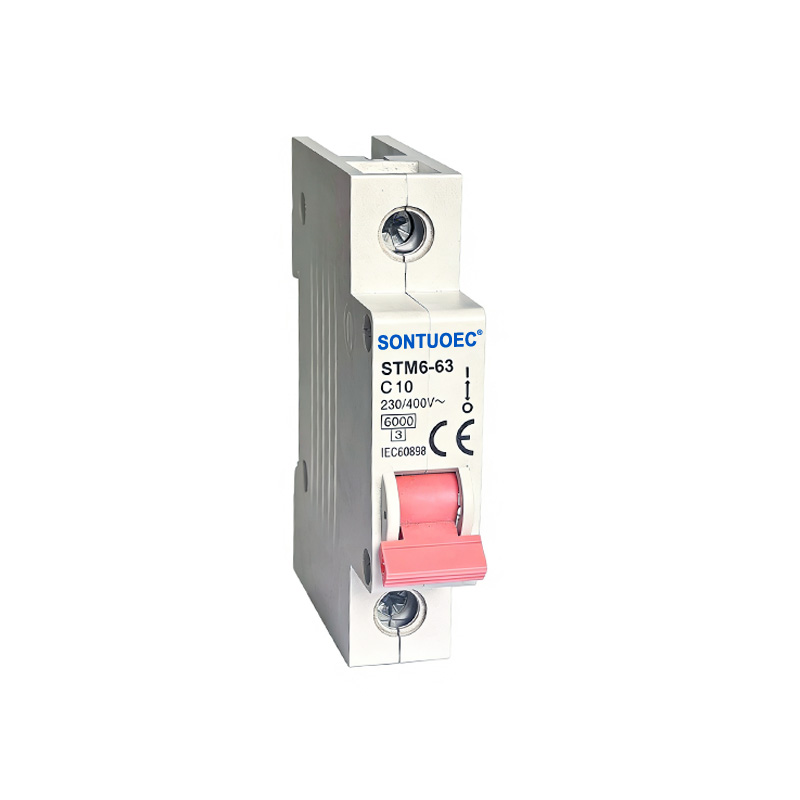

Sontuoec Stm6-63 6ka Kaapuni Kaapuni Li'ili'i 230V MCB

ʻO SONTUOEC kekahi o nā mea hoʻolako / mea hana Kina i ka hana ʻana i nā mea uila liʻiliʻi ʻē aʻe STM6-63 series kiʻekiʻe haʻihaʻi haʻihaʻi kiʻekiʻe i hoʻohana ʻia i ka AC 50/60Hz, helu helu o 230V. 3, 4 pole 400V, helu 'ia i kēia manawa i ka 63A no ka overload a me ka pōkole-kaapuni pale e like me ka unfrequented hoololi ma lalo o maʻamau case.It ua hoʻohana nui 'ia no ka 'oihana, kalepa a me ka home.This huahana conform to IEC60898 standard.

Hoʻohālike:STM6-63

E hoʻouna i ka nīnau

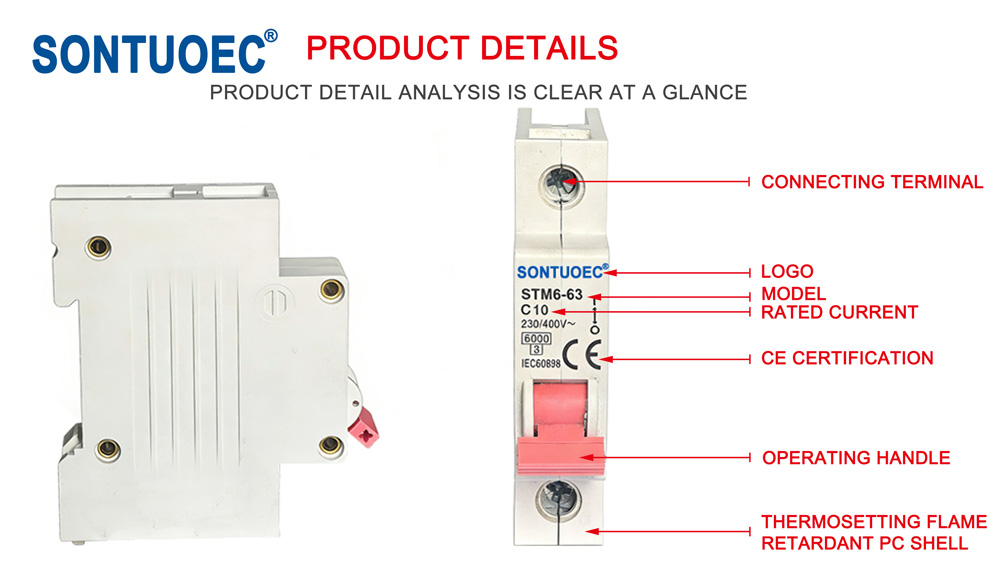

Hōʻike huahana

Nā kikoʻī:

Kahi i kumu:	Liushi, ueqing, Wenzhou, Zhejiang, Kina
Kapa inoa:	SONTUOEC, STUOEC,SONTUNE,SONTUOC,WZSTEC
inoa huahana:	Kaapuni Kaapuni liʻiliʻi / MCB
ʻAno:	Mini
Helu kumu hoʻohālike:	STM6-63
Manao Kaapuni Pokole lcu (V)	B,C,D
Voltage koho:	230V/400VAC
Helu ʻia i kēia manawa:	1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 60,63A
Ka hikiwawe:	6KA
Ka helu pinepine:	50/60Hz
Ka helu o nā pole:	1P, 2P, 3P,, 4P
Kiʻekiʻe:	≤2000m
Ka wela o ka lewa:	-5~40ºC
laula:	18mm/Pole
Kūlana:	IEC60898, GB10963
ʻAno pale:	pale kaumaha, pale kaapuni pōkole
ʻAno hele ʻana:	ʻano wela
Hoʻokaʻawale:	TH 35mm din hao
Kaha uwea:	≤25mm²
ʻO ka nui o ka hana pinepine:	1A-32A, 240 40A-63A, 120
