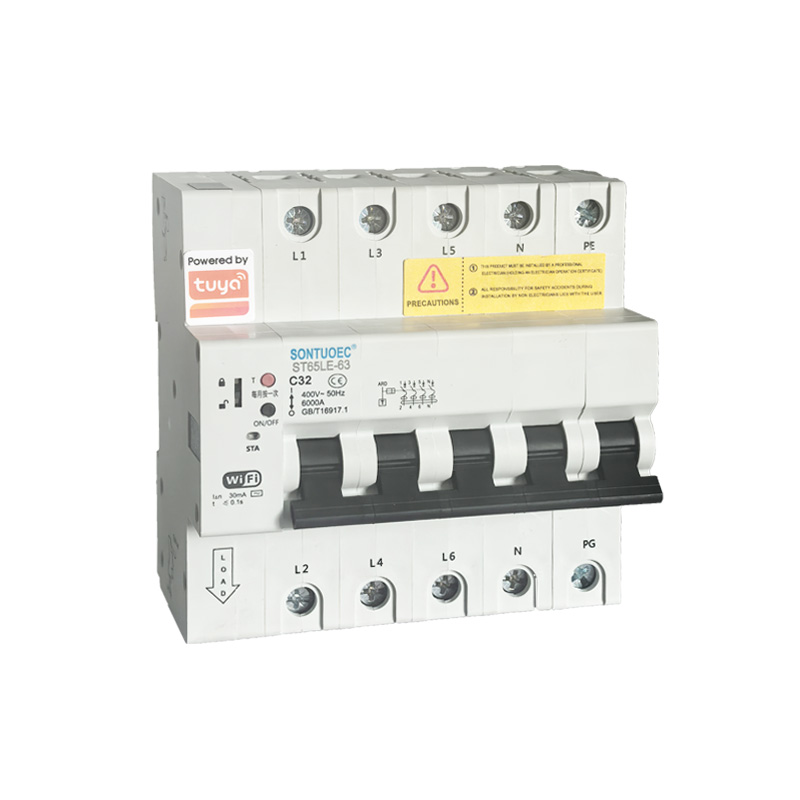

ʻO WiFi ST65LE-63wf2 Pūnaehana Nui IoT Naʻauao RCBO Kaapuni Kaapuni Naʻauao

NĀ KULA:

	Kūlana		IEC/EN  60898-1
Nā hiʻohiʻona uila	Ua helu ʻia i kēia manawa ma	A	1,2,4,6,10,16,20,25,32,40,50,63
	Pololei	P	1,2,3,4
	Volta Ue	V	AC   230/400;  240/415
	Ui uila hoʻokaʻawale	V	500
	Ua helu pinepine ʻia	Hz	50/60
	Ua helu ʻia ka hiki haʻihaʻi	A	4500  ;6000
	Hoʻopaʻa ʻia ka manaʻo e kū i ka uila (1.2/50)Uimp	V	4000
	ʻO ka uila ho'āʻo dielectric ma ind.Freq.no 1 min	Kv	2
	Degere haumia		2
	ʻO ke ʻano hoʻokuʻu Thermo-magnetic		B,C,D
Nā hiʻohiʻona mīkini	Ola uila	t	4000
	Ola mīkini	t	10000
	Degere pale		IP20
	Hōʻike wela no ka hoʻonohonoho ʻana	ºC	30
	o ka mea wela
	Ka wela ambient	ºC	-5~+40(Noho kūikawā e ʻoluʻolu e nānā
	(me ka awelika o kēlā me kēia lā ≤35ºC)		ka hoʻoponopono ʻana i ka mahana)
	ʻO ka mahana mālama	ºC	-25~+70
Hoʻokomo	ʻAno hoʻohui terminal		Uila/Pina-type busbar
	Ka nui o ka pahu ma luna/lalo no ke kaula	mm2	25
		AWG	18-3
	Ka nui wela ma luna/lalo no ka busbar	mm2	25
		AWG	18-3
	Hoʻopaʻa i ka torque	N*m	2
		I-lbs	18

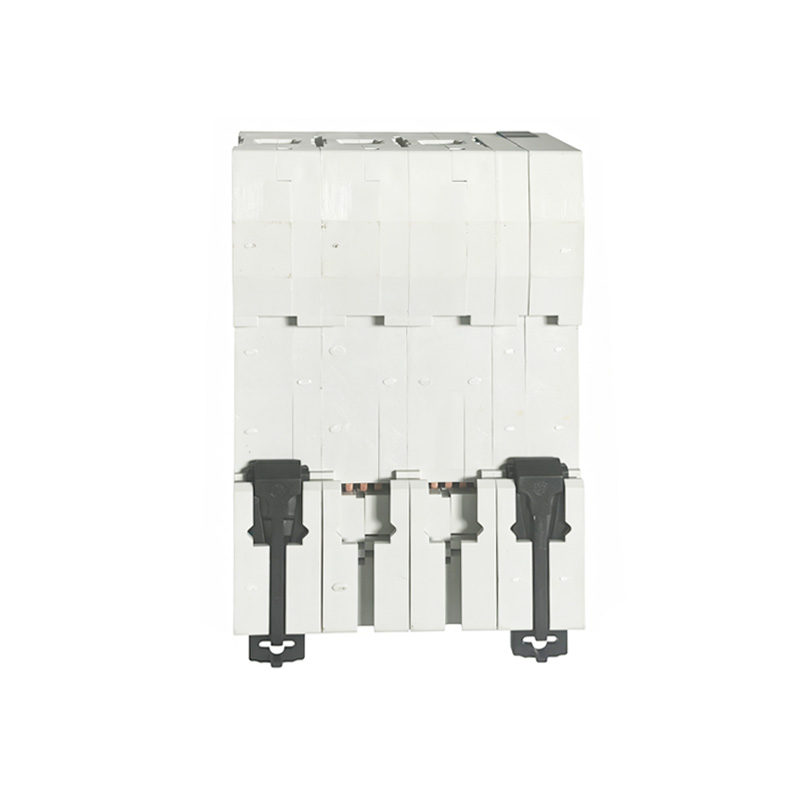

	Ke kau ʻana		ma ke kaʻaahi DIN EN 60715(35mm) ma o ka mīkini paʻi wikiwiki
	Hoʻohui		Mai luna a lalo

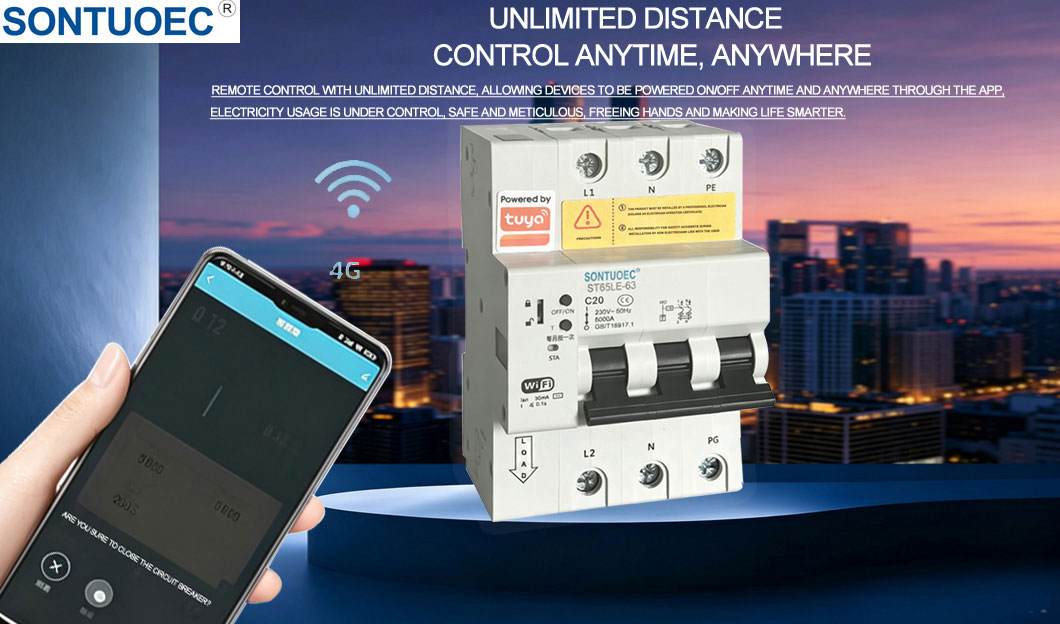

ʻO ka WiFi Smart Circuit Breaker he mea pale kaapuni me ka ʻenehana kamaʻilio Wi-Fi i hoʻohui ʻia, e hiki ai i nā mea hoʻohana ke hoʻomalu mamao i ke kūlana hoʻololi o kahi kaapuni i kēlā me kēia manawa, ma nā wahi āpau ma o ke kelepona a i ʻole nā ​​​​mea akamai ʻē aʻe. ʻAʻole hāʻawi wale kēia mea haʻihaʻi kaʻapuni i ka overload kuʻuna a me ka pale pōkole pōkole, akā lawe pū kekahi i ka ʻoluʻolu a me ka maʻalahi i nā mea hoʻohana ma o ka hoʻohui Wi-Fi.

Nā mea koʻikoʻi hana

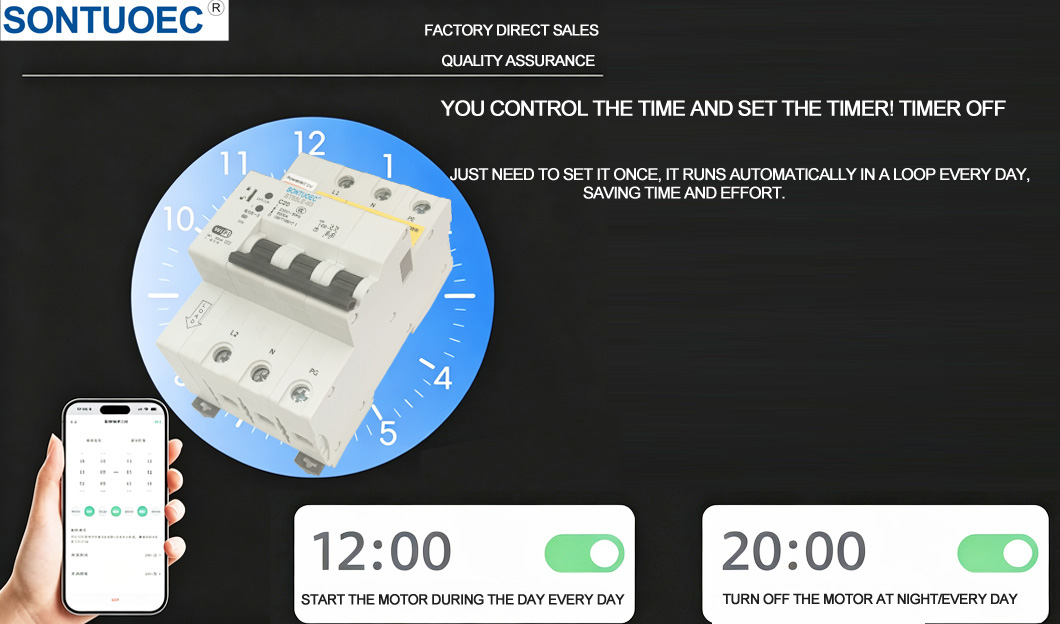

ʻO ST65LE-63  series WiFi Smart Circuit Breaker he hoʻololi naʻauao multi-function e hoʻohui i nā hana o ka ana uila, overload, pōkole pōkole, ma luna a ma lalo o ka uila, leakage, ka pale ʻana i ka wela, ka wehe mamao a me ka pani ʻana, ka manawa, kamaʻilio pūnaewele a pēlā aku. Hiki ke hoʻohana nui ʻia i nā wahi hoʻokele mana akamai e like me ke kālepa, ka mahiʻai, nā kula, nā halemai, nā hōkele, nā wahi leʻaleʻa, nā kikowaena, nā ʻāpana mālama moʻomeheu moʻomeheu, ka hoʻokele kukui alanui kūlanakauhale a me ka mana, a hiki ke hoʻohana nui ʻia i ka hoʻokele hoʻohana ʻana i ka ikehu i nā ʻoihana ʻoihana a me nā ʻoihana mining, nā hale keʻena a me nā wahi ʻē aʻe.

Palapala noi

Hiki ke hoʻohana nui ʻia kēia WIFI intelligent recloser circuit breaker i ka hale, nā hale hana, sduent dormitroy, ʻāina mahiʻai, nā hana muicipal a hiki ke hoʻokele naʻauao mamao i ka pā wai, ka mea hoʻomehana wai, underfloor heating equiement, etc.

Hana

He kūpono kēia  kaapuni kaapuni hou no 50Hz/60Hz, 230/400V 0~125A kaapuni i loaʻa ka hana e like me ka pale overload, ka pale pōkole a me ka pale kaawale. Eia nō naʻe, ʻo kēia kaʻa kaʻa kaʻa hoʻihoʻi akamai i ka hana e like me ka hoʻololi ʻana i ka oof/on ka mana mamao honua e ke kelepona paʻalima.
